GATE OPENER BRANDS
|
POWER MASTER
Gate Systems: GATE OPERATORS:
Power
Master is your best source for
Automatic Gate Openers large or small Commercial or Residential We
have your Door Operating Devices with the Access Control you need
our skilled staff, and years of experience, gives Power Master Gate
Openers the edge. Browes thru our line of Sliding Gate Operators, Swing
Gate Operators, Barrier Arm Operators.Whether You Need A single Gate
Opener Or Dual you can trust us for your Electric Gate
Opener we can handle all of your needs in one place...( We dare you
to compare with any brand- brands like Elite, Eagle, FACC, Mighty
Mule, Apollo, GTO. )
Click Her For
Replacement of Main Circuit Control Board of most Gate Openers
Below are the Swing Gate Openers that we have available from Power Master.
 |

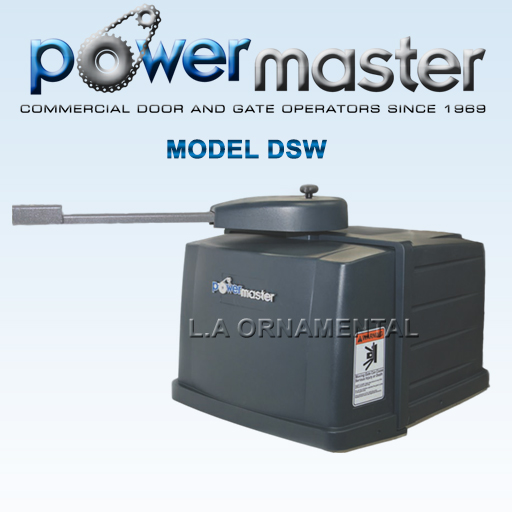

PowerMaster DSW Commercial Swing Gate Operator
Specifications:
• Cover: UV Protected Polyethylene (Clam Shell Design)
• Gearbox: 750:1
• Motor: 1/2 HP, 500 Watt, 24VDC
• Power input 120 VAC
• Travel Speed: 90 Degrees in 15 seconds (approx.)
• Gate Capacity: 800 lbs, 18 feet commercial capacity
• Arm attachment Height: 17” from operator base
• Dimensions: 18” High, 18.5” Wide, 23.5” Deep |
 |
PowerMaster RSW Gate Openers
Mechanical Specifications:
For Use on Residential Slide Gates (Up to 14' Wide, Max. Weight 250 lbs.)
Can be Post or Pad Mounted
Positive Cain Driven Rotary Limit Switches
Manual disconnect Provided
Universal Left or Right Hand Mounting
Steel All Weather Enclosure
Click Here For More Information |
 |
PowerMaster MSW Residential Gate Openers or Operators
Mechanical Specifications:
For Residential, Commercial or Industrial Swing Gates (Up to 15' Wide or 800 lbs. Max.)
Universal Left or Right Hand Mounting
Steel All Weather Enclosure
Designed for Pad or Post Mounting, Hardware Supplied
Gate Mechanically Locked in Closed Position
Adjustable Torque Limiting Clutch
V-belt and Wormgear Primary Reduction
#41 Chain Sprocket Final Reduction
Heavy Duty Arm with Manual Disconnect
Positive Cam Actuated Limit Switches
Click Here For More Information
|
 |
PowerMaster CSWC 2000 or 2004 Gate Openers
Mechanical Specifications
For Commercial or Industrial Swing Gate (up to 22' Wide or 1200 Lbs. Max.)
Heavy Duty Swing Arms
Designed for Pad Mounting
Gate Mechanically Locked in Closed Position
Adjustable Torque Limiting Clutch
45:1 Gear Reducer (Oil Bath Type)
#50 Chain and Sprocket Final Reduction
Hinged Access Doors w/Lock
Positive Cam Actuated Limit Switches
Universal Left or Right Hand Mounting
Heavy Gauge Steel, All Weather Enclosure
Click Here For More Information
|
 |
Power Master CSWI Commercial Swing Gate Operators
Mechanical Features:
Heavy duty #11 Ga. Galvanized steel frame providing a strong and durable unit.
#16 Gauge galvanized steel, lockable exterior cover for drip proof water protection.
Hard shell, baked-on weather resistant powder coating, with an attractive textured finish, for years of
aesthetic protection from the elements.
Timing belt primary reduction for smooth, quiet and positive operation.
Heavy Duty 45:1 oil bath type gear reducer for long service and dependable operation.
Heavy Duty #40 sprocket and roller chain arrangement for final drive reduction.
Heavy Duty pillow block type ball bearing supporting output drive shaft and enabling extended endurance
under heavy loads with low maintenance.
Drive arm easily disconnected for manual operation in case of power failure.
Easy adjustable limit switch cams for precision gate positioning.
Soft start and stop at open and close limits of travel, due to the inherent geometry of the articulating drive
arm linkage.
Pad mounted for a strong, solid installation.
|
 |
D-SG Commercial Slide Gate Operator with DC Motor
PowerMaster Model D-SG Slide Gate Operator with DC Motor is designed for use in commercial and industrial applications for gates up to 50ft wide and up to 2,000lbs. Use for up to 60 cycles per hour.
Mechanical Features:
- Battery Backup
- 588 Watts (1/2hp equivalent), 24VDC Motor
- AC Power Outlet
- Nitro Board with 4-Line LCD Display
- Built-in Radio Receiver
- Soft Start/Soft Stop
- Easy Set Limits
- Heavy Duty Steel Frame with Polyethylene Rust and Dent Proof Cover
Click Here For More Information
|
 |
D-SWI MODEL D-SWI INDUSTRIAL SWING GATE OPERATOR
The D-SWI Operator features a DC motor with battery backup is designed for use on industrial vehicular swinging gates in high traffic applications. Ideal for commercial properties.
Mechanical Features:
- Battery Backup
- 576 watts (1/2hp equivalent), 24VDC motor
- AC power outlets
- Dual gate option
- Soft start/Soft stop
- Easy set limits
- Timer to close
Click Here For More Information
|
 |
CSWI INDUSTRIAL SWING GATE OPERATOR
The CSWI Operator is designed for use on industrial vehicular swinging gates in high traffic applications. Ideal for commercial properties.
Mechanical Features:
- Nitro board with 4-line LCD display
- Dual gate option
- Easy set limits
- Timer to close
- Left/right changeover in field
- Pad mountable for a strong, solid installation
Click Here For More Information
|
 |
ASW Actuating Swing Arm Operator
The PowerMaster ASW with DC motor controls vehicular gates in moderate traffic and residential applications.
Mechanical Features:
- Battery Backup – Up to 600 cycles on fully charged batteries when AC power is out
- 60 Watt, 24 VDC Motor
- Soft start/Soft stop
- Single or Dual gate mode
- AC Power outlets
- Accepts plug-in loop detectors
Click Here For More Information
|
Below are the Sliding Gate Openers that we have available from Power Master.
 |
PowerMaster RSG Gate Openers
Mechanical Specifications:
For Use on Residential Slide Gates (Up to 14' Wide, Max. Weight 350 lbs.)
Can be Post or Pad Mounted
Positive Cain Driven Rotary Limit Switches
Manual disconnect Provided
Universal Left or Right Hand Mounting
Steel All Weather Enclosure
Click Here For More Information
|
 |
Power Master MSG Heavy Duty Residential Sliding Gate Opener
Mechanical
Specifications:
Heavy duty #11 Ga. Galvanized steel frame providing a strong and durable unit.Hard shell baked-on weather resistant powder coating with an attractive textured finish for years of aesthetic protection from the elements.
Industrial V-belt primary reduction for smooth quiet operation.
#65 Sprocket and roller chain arrangement for final drive reduction.
Oil impregnated brass bearings supporting output drive shaft for dependable service with low maintenance.
Heavy duty #41 roller chain driving gate.
Easy pull and latch drive disconnect with solid brass slide for manual operation in case of a power failure.
Positive chain driven rotary limit switches for precision gate positioning. Never affected by manual operation.
Post or pad mountable for easy installation.
|
 |
PowerMaster SG-2004 Sliding Gate Openers
Mechanical
Specifications:
PowerMaster SG Slide Gate Operator for use in Commercial and Industrial Applications for gates up to 50’ wide and 1,500 lbs. Use for up to 30 cycles per hour.
- Nitro Board with 4-line LCD Display
- Timer to Close
- Self Adjusting Maximum Run Timer
- Easy Left/Right Changeover
- Onboard, 3-Button Control Station
- Heavy Duty Steel Frame with Polyethylene Rust and Dent Proof Cover
Click Here For More Information |
 |
PowerMaster SGI Slide Gate Operators
Mechanical Specifications:
For Use on Commercial or Industrial Slide Gates (Up to 80' Wide or 2400 lbs. Max.)
45:1 Gear Reducer (Oil Bath Type)
Positive Chain Driven Rotary Limit Switches
Gate Driven by #50 Heavy Duty Roller Chain, Provided with Operator
1" Drive Shaft Supported by Roller Bearing Pillow Blocks
Adjustable Torque Limiting Clutch
Electric Solenoid Operated, Double Shoe Brake
10 Gauge Weather Proof Enclosure
Click Here For More Information |
 |
Power Master CSG Slide Gate Operators or Openers
Mechanical Specifications:
Maximum gate weight: 1200 lb
Maximum cycles per hour: 25 CPH
Maximum gate width: 30 feet
Heavy duty #7 Ga. Galvanized steel frame providing a strong and durable unit.
Polyethylene exterior cover for years of durability while retaining it's original aesthetics
Hard shell, baked-on weather resistant powder coating, with an attractive textured finish, for years of protection
Cogged V-Belt primary reduction for smooth, quiet operation
30:1 oil bath type gear reducer for long service and smooth, quiet operation
Equipped with a hand crank, electrically interlocked, for manual operation in case of power failure
Heavy duty #41 drive chain with a spring loaded tensioning system for smooth starts, stops and reversals
Positive, chain driven, rotary limit switches for precision gate positioning. Settings are never affected by
manual operation
Pad mountable, with on board footprint, for easy installation
Click Here for More Information |
 |
PowerMaster BSG Gate Operators
Mechanical Specifications:
For Use on Medium Duty Commercial or Industrial Slide Gates (Up to 35' Wide or 1000 lbs. Max.)
timing belt and pulleys for quiet operation
Chain and Sprocket Final Reduction
Positive Chain Driver Rotary Limit Switches
Gate Driven by #41 heavy Duty Roller Chain, Included
1" Drive Shaft Supported by Roller Bearings
Adjustable Torque Limiting Clutch
Electric Solenoid Brake
Manual Disconnect Provided
Steel, Lockable, All Weather Hinged Cover |
Below are the Barrier Gate Openers that we have available from Power Master.
 |
PowerMaster MBG Arm Barrier
Mechanical Specification
Heavy duty 11-gauge galvanized steel frame providing a strong and durable unit.
20- gauge galvanized steel protective cover.
Hard shell baked-on weather resistant powder coating with an attractive textured finish for years of aesthetic
protection from the elements.
Industrial timing belt primary reduction for no slip positive operation.
45:1 oil bath type gear reducer for long service and smooth, quiet operation.
Positive cam-actuated limit switches, ensuring consistent and accurate arm positioning. Settings are never
affected by manual operation.
Post mounted for a quick solid installation (2 inch diameter pipe by others).
Click Here For More Information
|
 |
PowerMaster P1500 Barrier Parking Traffic Control
Mechanical Specifications:
Single Gate Arms to 14'
12 Gauge Enclosure with Lockable Cover
45:1 Gear Reducer (Oil Bath Type)
Double Shaft Reduction System with #50 Chain and Sprockets and Roller Bearing Pillow Blocks
Adjustable Torque Limiting Clutch
Positive Cam Actuated Limit Switches
PowerMaster SBG ART P1500 Barrier Operators
Open/Close Switch on Control Panel
Pre-wired to Accept Radio Controls, Reversing Equipment, Loop Detector Systems,
Automatic Closing Timers, 7 Day Timers and Standard Control Stations
Single Gate Arms to 14' 12 Gauge
Enclosure with Lockable Cover
45:1 Gear Reducer (Oil Bath Type)
Double Shaft Reduction System with #50 Chain and Sprockets and Roller Bearing
Pillow Blocks
Adjustable Torque Limiting Clutch
Positive Cam Actuated Limit Switches
Click Here For More Information
|
 |
PowerMater P5000 Gate Operators
Mechanical Specifications:
12' - 20' Wishbone Style Arm
12 Gauge Enclosure with Lockable Cover
45:1 Gear Reducer (Oil Bath Type)
Double Shaft Reduction System with #50 Chain and Sprockets and Roller Bearing Pillow Blocks
Adjustable Torque Limiting Clutch
Positive Cam Actuated Limit Switches
Adjustable Linkage to Set Closed Position of Gate Arm Level to Ground
Click Here For More Information |
 |
PowerMaster Model D-SBG - DC gate opener
- Heavy duty #13 Ga. Galvanized steel frame providing a strong and durable unit.
- #13 Ga. Galvanized steel, lockable top cover and side door for easy access.
- 45:1, oil bath type, gear reducer, using a full 360 degrees rotation
- Heavy duty #50 sprocket and roller chain arrangement for intermediate drive reduction
- Heavy duty, pillow block type ball bearings, supporting output drive shaft and enabling extended endurance with low maintenance.
- Cam actuated limit switches ensuring consistent and accurate arm positioning.
- Soft start and stop at the open and close limits of travel, due to the inherent geometry of the internal drive linkage.
- Pad mounted for a strong solid installation.
|
 |
PowerMaster Model D-WBG - DC Wishbone Arm Barrier Gate Operator with DC Motor
- Battery Backup – Up to 200 cycles on fully charged batteries when AC power is out
- 576 Watts (1/2 HP equivalent), 24 VDC Motor
- Continuous duty operation
- Low battery shut down position selection (open/close)
- Accepts plug-in loop detectors
- Max Arm Length: 24ft
- Battery Backup: YES
- Shipping Weight (approx.): 400lbs
|
|
