FAAC is the undisputed world leader in automated systems
for opening gates, doors and garage doors. We produce automatic movement
operators for gates, garage doors, barriers, rolling gates, swing gates and access
control systems, with countless solutions for intensive, heavy commercial uses
as well as for residential application.
 |
FAAC DSL2000 Slide Gate Operator
Gearbox 15:1 Fail Safe
Chain Size #41, 25ft
Chain height - front mount 11” from base
Chain mount options Front, rear, center
Travel speed 12 inches/sec
Gate capacity 1000 lbs, 40 feet
Shipping weight 125 lbs
Dimensions 22” H, 18” W, 15” D Click Here For More Informatio
|
 |

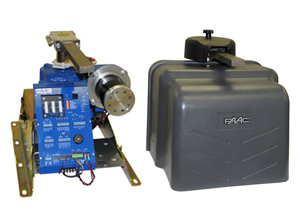

FAAC DSW2000 Swing Gate Operator
Gearbox 900:1 Fail Secure
Arm type Industry standard
Arm attachment height 17” from base
Mounting method Pad or baseplate
Travel speed 90 degrees in 15 sec
Gate capacity 800 lbs, 18 feet
Shipping weight 150 lbs
Dimensions 18” H, 18.5” W, 23.5” D Click Here For More Informatio |
FAAC Low Voltage
Operators
 |

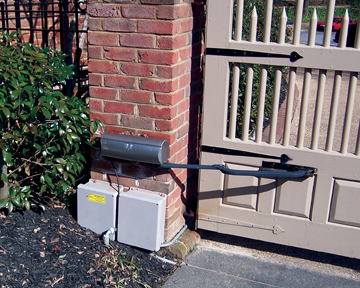

FAAC 390 24V
Openers & 425 D Control Panel
The Model 390
electromechanical swing gate opener is specifically designed for residential
applications. The 390 is designed to primary accommodate large pillar
installations. Also ideal for use on " carriage style" swinging garage doors.
The self-contained 390 24v Opener consists of a irreversible electromechanical
motor and articulated arm. The locking the 390 24v Operator provides in the
fully opened and fully closed positions is a service device rather than a
security device.
Click Here For More Information |
 |

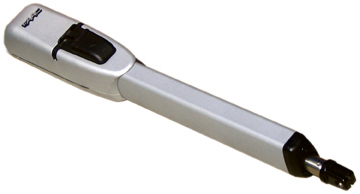

FAAC 415 115 VAC or 24V VDC
Swing Gate Operator
The Model 415
low volt operator was designed to provide power and versatility to an economical
residential swing operator. The 415 Compact Operator is an automatic
residential applications and can accommodate a gate leaf up to 14 ft (4.3 m)
long. The self-contained 415 Compact Operator consists of an electric motor that
drives a worm screw housed in an aluminum casing. The locking the 415 Operator
provides in the fully opened and fully closed positions is a service device
rather than a security
device.
Click Here For More Information |
 |
FAAC 740 24V Slide Gate
Openers
The Model 740
opener combines cutting-edge technology with sophisticated styling for single
family residential applications. The 740 is perfect for single family
residences: access areas of medium transit frequency. The 740 24V
automated system for sliding rack pinion or chain appropriately coupled to the
gate. Features: Gate automatically locks when not operating, Battery back-up is
optional, "Soft stop" on opening and closing, External limits, A convenient
manual release is standard. The 740-24V automated system is ideal for
controlling vehicle access areas of medium transit frequency. The 740-24V
automated system for sliding gates is an electro-mechanical opener transmitting
motion to the sliding gate via a rack pinion or chain appropriately coupled to
the gate.
Click Here For More Information |
 |

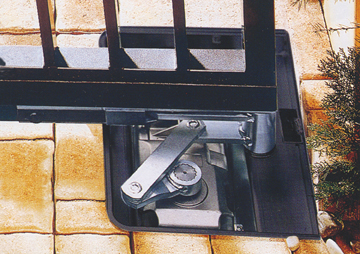

FAAC 770 Low Voltage Swing
Gate Operators
The Model 770
swing gate operator is designed for residential and in-ground applications. The
770 is a 24 VDC operator that features a 100% duty cycle. The 770 is an
in-ground operator and can swing a gate leaf of up to 10 ft. in length and
weighing up to 800 lbs. The 770 COMPACT automation system for swing gates is a
geared motor. It is designed for underground installation and therefore does not
alter the appearance of the leaf. The foundation box of the automation system
comes ready to take an operator. The 770 electromechanical operator is
irreversible, so it ensures a mechanical stop and eliminates the need to install
an electric lock
Click Here For More Information |
FAAC
Hydraulic - Electromechanical Swing Gate
Operators /
Openers
 |

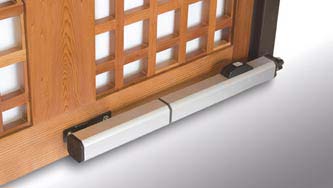

FAAC 400 Heavy duty Hydraulic
Swing Gate Openers
The Model 400
hydraulic swing gate opener is specifically designed for situations needing
maximum versatility, such as certain apartment, subdivision, commercial /
industrial and residential applications. It's strength also makes the 400 an
excellent choice for large, ornate gates. The Model 400’s quiet, yet powerful
hydraulics produce smooth and safe gate operation. It’s compact size enhances
gate design. The FAAC 400 is an automatic gate opener for a swinging gate leaf.
It can accommodate a gate leaf of up to 2000 lb (900 kg) and up to 20 ft (6 m)
in length
Click Here for More Information |
 |

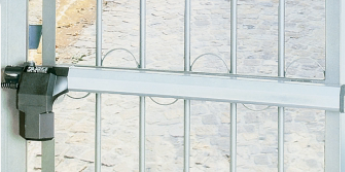

FAAC 412 Electromechanical
Swing Gate Operators
The Model 412
electromechanical swing gate operator is designed specifically for light single
family residential use. The Model 412 High Voltage includes One 455 D control
panel which operates single leaf or bi-parting gates. The Model 412 Low Voltage
includes One 425 D control panel which operates single leaf or bi-parting gates.
The Model 412, like other FAAC swing gate operators, is inherently safer because
it has fewer “pinch points.” In addition, the force it applies to move the gate
is adjustable for extra entrapment
protection.
Click Here For More Information |
 |
FAAC 402 Hydraulic Swing Gate
Openers
The Models 402
hydraulic swing gate opener are designed for private residences. They offer many
of the benefits of a large gate operator in a compact form. The FAAC 402 Opener
is an automatic gate operator for a swinging gate leaf. It can accommodate a
gate leaf of up to 900 lb (410 kg) and up to 10 ft (3 m) in length. The 402
hydraulic system can hydraulically lock the gate in your choice of the opened or
closed positions. The 402 system can hydraulically lock the gate in your choice
of the opened and/or closed positions. Both models have versions that allow your
gate system be set up to provide special options including “gate-safe” or “
gate-secure”
configurations:
Click Here For More Inforamtion |
 |

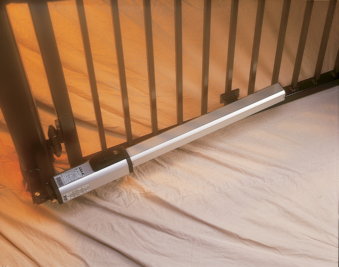

FAAC 422 Hydraulic Swing Gate
Operators
The Models 422
hydraulic swing gate operator are designed for private residences. They offer
many of the benefits of a large gate operator in a compact form. The FAAC 422
Operator is an automatic gate operators for a swinging gate leaf. It can
accommodate a gate leaf of up to 900 lb (410 kg) and up to 10 ft (3 m) in
length. The 402 hydraulic system can hydraulically lock the gate in your choice
of the opened or
closed positions. The 422 system can hydraulically
lock the gate in your choice of the opened and/or closed positions. Both models
have versions that allow your gate system be set up to provide special options
including “gate-safe” or “ gate-secure”
configurations:
Click Here For More Information |
 |
FAAC 750 In-Ground Swing Gate
Openers
The Model 750
hydraulic swing gate opener is designed specifically for underground
installation in residential applications. Because of It’s power and
invisibility, the 750 is ideal for large, ornamental gates. FAAC 750 openers is
equipped with a hydraulic bypass valve for extra entrapment protection and a
manual release that allows you to operate your gate if there is a power failure.
A battery back-up unit is also available. The 750 offers Voltage or 115 VAC (1.5
A) or 230 VAC (1 A). The 750 Operator is an automatic gate operator for a
swinging gate leaf. It can accommodate a gate leaf of up to 1760 lb (800 kg) and
up to 13 ft (4 m) in
length
Click Here For More Information |
 |
FAAC 760 Hydraulic Swing Gate
Operators
The Model 760
hydraulic swing gate operator is designed specifically for underground
installation in residential applications. Because of It’s power and
invisibility, the 760 is ideal for large, ornamental gates. The 760 offers
Voltage 115 VAC (2.5 A) or 230 VAC (1.5 A). The Model 760 includes the special
feature of having both the power and pump units located underground. This
integrated system results in simplified installation and maintenance, plus
allows you to operate the manual release from inside or outside the
gate. The 760 also comes with a “soft stop” feature which slows down the
gate leaf at the end of
travel.
Click Here For More Information |
 |
24VDC Hydraulic Operator for residential/condominium and commercial swing-leaf gates with single-leaf max. length of 14ft and single-leaf weight of 1,100lbs with opening/closing stops included.
Click Here For More Information |
 |
24VDC Hydraulic Underground operator for residential swing-leaf gates with single-leaf max. length of 13ft and single-leaf max. weight of 1,300lbs. The model S800H includes a hydraulic manual release and built-in positive stops.
Click Here For More Information |
 |
24VDC Electro-Mechanical swing gate operator with single-leaf max. length of 12 FT and max. single-leaf weight of 500lbs with integrated mechanical stops.
Click Here For More Information
|
FAAC Slide Gate Openers /
Operators
 |
FAAC 746 Electric Slide Gate Openers
The FAAC 746 Compact Slide Gate Opener uses GentleSlidetm Motion Management to
slide gates with a pulling force of up to 35 lb (16 kg). This operator is available in two
basic versions, the rack and pinion or the chain version. It comes as a package
containing the drive unit and factory-wired electronic control panel inside the top cover
of the unit. All external reversing devices and other accessories must be ordered
separately. The control panel provides power for gate accessories of 24 VDC (pulsed
or constant). The maximum recommended amperage draw for accessories should not
exceed 360 milliamps.
Click Here For More Information |
 |
FAAC 820 Slide Gate
Operators
The 820 Slide
Gate Operators are compact with GentleSlide Motion Management for high-traffic
applications. The 820 is designed for medium-weight gates, and the 860 is
designed for heavier gates. Either operator is available with a chain drive or a
rack and pinion drive. The 820 operator feature internal limit switches for gate
leaves up to 59 ft (18 m) in length. The motor for the 820 or 860 Operator
serves as a gate lock. For further reliability, the motor's armature shaft is
mounted on double bearings. The worm drive mechanism and single-plate clutch are
encased in oil to lubricate their moving parts and dissipate the heat they
generate during
operation
Click Here For More Information |
 |
FAAC 844 Slide Gate
Openers
The FAAC 844
Compact Slide Gate Opener is available in a rack and pinion or a chain model. It
comes as a package containing the drive unit and electronic separately. The
electronic control panel installed in the cover of the 844 Operator is a
microprocessor-based controller that accepts a full range of product accessories
and reversing devices to allow the maximum flexibility in designing the
gate system. The
advanced design of the opener features a small,
self-contained unit composed of an electric motor with a built-in clutch and a
reduction gear box, both housed in a die-cast aluminum casing. The motor drives
the rack or chain to slide the
gate.
Click Here For More Information |
 |
FAAC 860 Slide Gate
Operators
The 860 Slide
Gate Operators are compact with GentleSlidetm Motion Management for high-traffic
applications. The 860 is designed for medium-weight gates, and the 860 is
designed for heavier gates. Either operator is available with a chain drive or a
rack and pinion drive. The 860 operators feature internal limit switches for
gate leaves up to 59 ft (18 m) in length. The motor for the 820 or 860 Operator
serves as a gate lock. For further reliability, the motor's armature shaft is
mounted on double bearings. The worm drive mechanism and single-plate clutch are
encased in oil to lubricate their moving parts and dissipate the heat they
generate during
operation.
Click Here For More Information |
FAAC Arm Barrier
Oeprators
 |
FAAC 615 Barrier Gate
Openers
Big Benefits for
Light - Medium Traffic Specifically designed for light - medium traffic
applications, the 615 can raise beams from 6 1/2 to 13 feet (2 to 4 meters) in 3
- 8 seconds. With a 50% duty cycle, the 615 is ideal for certain residential and
commercial uses with an economy opener for medium length beams. The 615 has many
standard features, including hydraulic anti-crushing safety, hydraulic locking
so that the beam remains secure in the opened and closed positions, and a manual
release with a
personalized key. Also standard is the versatile 455 D control
panel.
Click Here For More Inforatmion |
|
FAAC 620 Hydraulic Barrier
Gate Operator
The Model 620 is
designed specifically for traffic control applications that require extremely
fast opening and closing times. When used with an aluminum beam of 8 1/2 feet or
less, the 620 has an opening time of under 2 seconds and a 100% duty cycle. The
620 system controls beams that are 6-1/2 to 16 ft (2 to 5 m) in length and
offers extremely fast opening and closing times. The 620 is ideal for
single-lane vehicular
traffic in moderate to heavy traffic. The 620
Barrier can also be articulated (jointed) for use with low overhead clearances
or skirted to prevent vehicles from passing beneath the beam. Both the 620 and
640 Barriers are supplied with the FAAC 624 MPS Control
Panel
Click Here For More Information |
 |

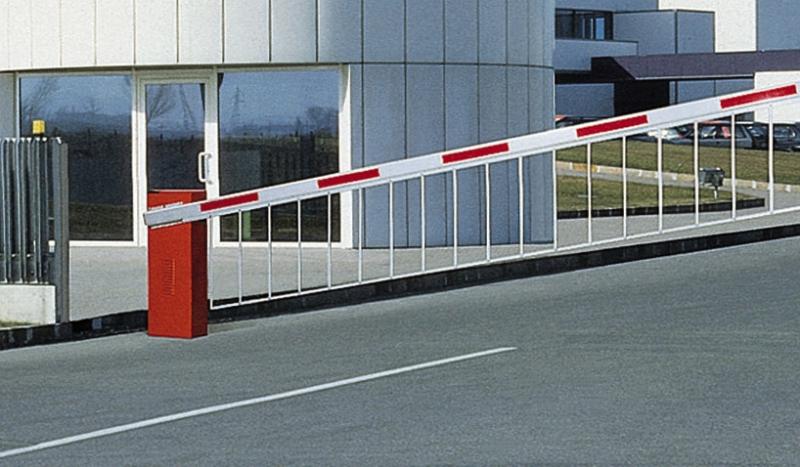

FAAC 640 Hydraulic Barrier
Gate Openers
The Model 640 is
the ideal hydraulic barrier for controlling heavy traffic at wide entrances. The
640 operates continuously, raising aluminum beams from 13 to 23 feet long in as
little as 4 to 7 seconds. The 640 Barrier system is for barrier beams that are
applications. The 640 Barrier can also be skirted (Aluminum Beams Only). The 640
Barriers are supplied with the FAAC 625 BLD Control Panel. The control panel
allows you to select the following: Logical mode of operation, Braking time of
the beam, Pause time between opening and closing
Click Here For More Information |
|
