For Replacement Electronic Main Control Boards for most brands of gate openers Click Here

One of the nation's foremost manufacturers of commercial and residential gate and door operating systems,
OSCO provides quality automatic openers for the fencing, parking, ornamental iron and garage door industries.

                       SWD-211

• Weather-resistant galvannealed steel cabinet with powder coat finish

• Lockable, gasketed and removable front cover for easy access


Mechanical:

• Heavy-duty 60:1 right-angle C-face gear reducer

• Heavy-duty gate arm assembly with harmonic design for smoother starts and stops

• Over-center gate arm "locking" angle

• #40 roller chain and sprockets

• Adjustable torque limiter

• Heavy-duty pillow-block bearings


Mounting:

• 3 - 3 1/2" OD post mounting

• Optional pad mounting pedestal available


Anti-Entrapment/Detection Devices:

• Operator is pre-wired to accept contact and non-contact detection devices such as contact edges and/or photo
  electric eyes


Manual Release:

• Manual release is easily accessible


Control Circuit:

• Solid state circuit board, 24 VDC

• Inherent current sensing system

• 15 LEDs for easy setup and troubleshooting

• Built in maximum run timer and auto close timer

• Right-hand/left-hand easy conversion

• Master/Slave - simple three-wire connection

• Entrapment Alarm


Warning Signals:

• Continuous tone entrapment alarm

• Warning beeper to sound when gate is moving

• Pre-start audio/visual outputs included


Electrical:

• 1/2, 3/4 or 1 HP, 115 or 230 VAC, single phase, thermally protected, heavy duty C-face PSC motor; 1/2, 3/4 or 1 HP,
  230 or 460 VAC, 3 phase heavy duty motor

• Power on/off switch

• Emergency stop/reset button on front cover

• Duplex receptacle on 115 VAC units

• Three-button control station included

• Accessory connections are 24-volt AC or DC

• Easily adjustable rotary limit switches

• Full system capable for access controls and reversing devices

• Inherent entrapment sensing system featuring dual multi-turn precision potentiometers for accurate
  adjustment and enhanced safety

• Continuous-tone entrapment alarm with reset button

• Integrated warning beeper during gate movement

• 15 diagnostic LEDs on board for ease of setup and troubleshooting

• Selectable pre-start alarm with provision for ADA compliant visual prestart and run alarm

• AC and DC power available for access control accessories

• Integrated maximum run and auto close timer (0-124 sec)

• Built-in master/slave capability using 3-wire shielded cable


MECHANICAL FEATURES:

• Heavy-duty zinc-plated steel chassis

• Easily operated emergency manual disconnect handle

• Sleek and sturdy UV-stabilized polyethylene cover

• #41 drive chain - 31' included with the operator

• Universal pad mount standard - optional post mount kit available

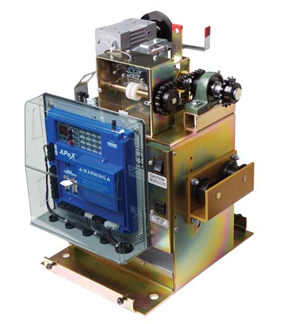

MODEL SLD EXCLUSIVE FEATURES:

• Full DC-powered operator with built-in battery backup

• Continuous duty 1/2 HP DC permanent magnet motor

• Powered by 115V or 24VDC supply

• Seamless transition to battery backup mode when AC power fails

• Selectable fail-safe or fail-secure modes of operation

• Solar power capable

Solid State Control Circuitry:

• All SL series operators utilize a common UL325/UL991 compliant 24VDC control board

• Fully featured board for complete access control, security and entrapment protection


Polyethylene Cover:

• The sleek and sturdy lockable cover is available in black, tan or granite


Manual Disconnect:

• Secure and easy to use, allows manual operation of gate during power failure or emergencies

• Optional remote cable kit available for outside-the-gate access


Heavy Duty Components:

• Gear reducer and pillow block bearing provides smooth, reliable and quiet power transmission


Standard Convenience Features:

• Exterior reset button

• Power on/off button
  Accessory power outlet on 115V machines

• 3-button station


Lockable, gasket, hinged and removable front cover for easy access

Mechanical: #40 roller chain and sprockets, Adjustable torque limiter, Heavy-duty pillow-block
bearings, Efficient double V-belt drive

Mounting:Cabinet: Weather-resistant galvanized steel cabinet with powder coat finish
Lockable, gasket, hinged and removable front cover for easy access, 3 - 3 1/2" OD post mounting,
Optional pad mounting pedestal available

Anti-Entrapment/Detection Devices: Operator is pre-wired to accept contact and non-contact
detection devices such as contact edges and/or photo electric eyes.

Manual Release: Manual release is easily accessible

Control Circuit: Solid state circuit board, 24 VDC - Inherent current sensing system - 15 LEDs for easy setup and
troubleshooting - Built in maximum run timer and auto close timer - Right-hand/left-hand easy conversion
Entrapment alarm

Electrical:1/2, 3/4 or 1 hp, 115 or 230 VAC, single phase, thermally protected, heavy-duty PSC motor; 1/2, 3/4 or 1 hp, 230 or 460
VAC, 3 phase heavy-duty motor - Magnetic solenoid disc brake - Power on/off switch - Emergency stop/reset button on front
cover - Duplex receptacle on 115 VAC units - Three-button control station included - Accessory connections are 24-volt AC
or DC - Easily adjustable rotary limit switches - Full system capable for access controls and reversing devices

Cabinet: Weather-resistant galvanized steel cabinet with powder coat finish
Lockable, gasket, hinged and removable front cover for easy access

Mechanical: Heavy-duty 15:1 right-angle C-face gear reducer, #50 roller chain and sprocket,
Adjustable torque limiter,
Heavy-duty pillow-block bearings.

Mounting: 3 - 3 1/2" OD post mounting - Optional pad mounting pedestal available

Anti-Entrapment/Detection Devices: Operator is pre-wired to accept contact and non-contact
detection devices such as contact edges and/or photo electric eyes.

Manual Release: Manual release is easily accessible

Control Circuit:  Solid state circuit board, 24 VDC, Inherent current sensing system, 15 LEDs for easy setup and
troubleshooting, Built in maximum run timer and auto close timer, Right-hand/left-hand easy conversion,
Master/Slave - simple three-wire connection, Entrapment Alarm

Electrical:1/2, 3/4 or 1 HP, 115 or 230 VAC, single phase, thermally protected, heavy duty C-face PSC motor; 1/2, 3/4 or 1
HP, 230 or 460 VAC, 3 phase heavy duty motor, Double C-face brake, Power on/off switch, Emergency stop/reset button
on front cover, Duplex receptacle on 115 VAC units, Three-button control station included, Accessory Connections
are 24-volt AC or DC, Easily adjustable rotary limit switches, Full system capable for access controls and reversing
devices

Warning Signals: Continuous tone entrapment alarm, Warning beeper to sound when gate is moving, Pre-start
audio/visual outputs included.

Dimensions: Width: 30" / Height: 36" / Depth: 12"

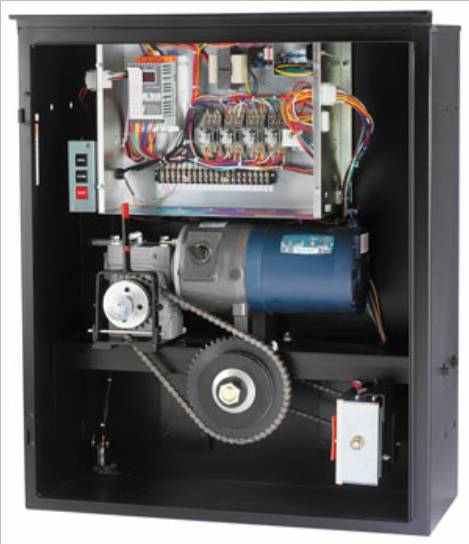

• Variable speed - soft start/soft stop programmable through an inverter motor control (voltage & phase of input
  power supply required at time of order)

• Available from 1/2 to 2 HP industrial continuous-duty, three-phase, 56-frame motor

• Run timer for clutch and motor protection

• Delay on reverse

• Master/Slave capability built in

• Easily convertible right hand/left hand

• Solid state control circuit

• Double C-face brake

• Power on/off switch

• Duplex receptacle on 115 VAC units

• Three-button control station included

• Accessory connections are 24-volt AC or DC

• Easily adjustable rotary limit switches

• Full system capable for access controls and reversing devices


Description:

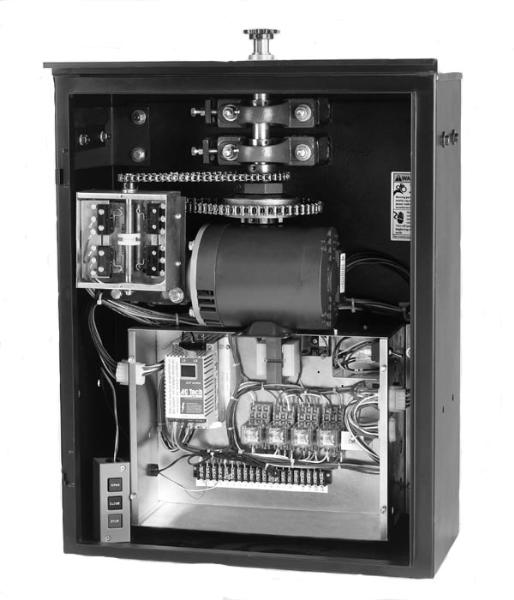

The Linear/OSCO Model VS-GSWG is a heavy-duty variable speed swing gate operator designed for smooth, secure
and reliable operation of large, heavy swing gates. The positive locking linear drive arm design provides enhanced
security, plus increased ability to withstand high wind loads - especially important for large, heavy gates. The VS-
GSWG features the same proven and reliable UL325/UL991 compliant solid state control circuitry as the rest of the
Linear/OSCO family of gate operators and is available in 1/2, 1 or 2 HP, 115V-460V single- or three-phase power. The VS-
GSWG utilizes an inherent current sensing system for entrapment protection and is listed for use in UL class I-IV
applications.
Cabinet:

• Weather-resistant galvannealed steel cabinet with powder coat finish

• Lockable, gasketed, hinged and removable front cover for easy access

• Mechanical:Heavy-duty 60:1 right-angle C-face gear reducer

• Adjustable torque limiter

• Linear drive arm

• Heavy-duty pillow-block bearings


Mounting:

• 3 - 3 1/2" OD post mounting

• Optional pad mounting pedestal available


Anti-Entrapment/Detection Devices:

• Operator is pre-wired to accept contact and non-contact detection devices such as contact edges and/or photo
  electric eyes


Manual Release:

• Manual release is located inside the operator enclosure


Warning Signals:

• Warning beeper to sound when gate is moving

Cabinet: Weather-resistant galvanized steel cabinet with powder coat finish
Lockable, gasket, hinged and removable front cover for easy access

Mechanical: Mechanical:Heavy-duty 10:1 right-angle C-face gear reducer - #50 roller chain and
sprocket - Adjustable torque limiter - Heavy-duty pillow-block bearings

Mounting: 3 - 3 1/2" OD post mounting - Optional pad mounting pedestal available

Anti-Entrapment/Detection Devices: Operator is pre-wired to accept contact and non-contact
detection devices such as contact edges and/or photo electric eyes.

Manual Release: Manual release is easily accessible

Control Circuit: Solid state circuit board, 24 VDC - Multiple LEDs for easy setup and troubleshooting - Built in maximum
run timer and auto close timer - Right-hand/left-hand easy conversion - Master/Slave - simple three-wire connection

Electrical: Variable speed - soft start/soft stop programmable through an inverter motor control (voltage and phase of
input power required at time of order) - Available from 1/2 HP to 2 HP industrial continuous-duty, three phase, 56-frame
motors - Available in all standard voltages and phases - Maximum run timer for clutch and motor protection
Double C-face brake - Power on/off switch - Duplex receptacle on 115 VAC units - Three-button control station included
Accessory connections are 24-volt AC or DC - Easily adjustable rotary limit switches - Full system capable for access
controls and reversing devices

Warning Signals: Warning beeper to sound when gate is moving - Pre-start audio/visual outputs included

Dimensions: Width: 30" / Height: 36" / Depth: 12"

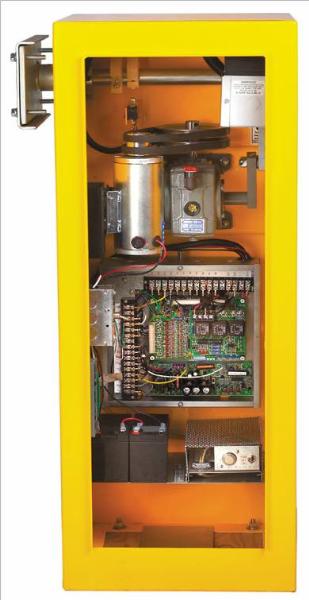

             MODEL BGU AND BGU-D BARRIER GATES
Models BGU and BGU-D barrier gates can be used for parking applications and revenue control.
Through switch selections, the gate operator is universal and suitable for all installation and operational functions.
Switch selection allows for full flexibility as to how and when the arm comes down in traffic control situations.
The added advantage to the DC operator is the automatic-open feature upon power loss. When the gate operator
senses AC power is no longer present, the arm will cycle open, remaining open until AC power is restored (fail safe)
OR continues normal operation while monitoring the battery level. Once the batteries are low, the unit will cycle
open until AC power is restored or the batteries receive a full charge (fail secure).
ELECTRICAL BGU:

• 1/3 HP, 115 VAC, single-phase, thermally-protected open-frame, resilient-mounted PSC motor

• Power on/off switch

• Duplex receptacle (115 VAC units only)

• Three-button control station included

• Accessory connections are 24-volt AC or DC

• Easily adjustable cam-operated limit switches

• Motor has manually-resettable overload

• Full system capable for access control and reversing devices


BGU-D:


• 24 VDC permanent magnet motor

• 115 VAC supply converted to 24 VDC for motor and controls

• Power on/off switch

• Three-button control station included

• Accessory connections are 24 VDC

• Easily adjustable cam-operated limit switches

• Full system capable for access controls and reversing devices


Options:BGU:

• 230V, single-phase operation

• Stainless steel cabinet for installations in areas where high concentration of corrosive materials is present

• Thermostatically-controlled strip heater

• Arm light kit


BGU-D:

• Stainless steel cabinet for installations in areas where high concentration corrosive material is present

• Arm light kit

• Optional solar panels


Gate Arm:

• 10', 12' or 14'

• Constructed of 1"x4" soft wood, painted white with yellow and black warning tape and labels on each side.

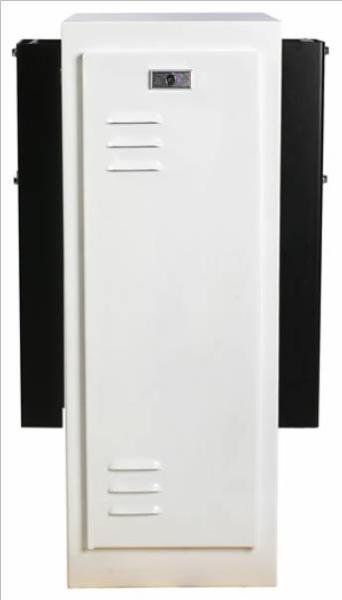

     MODEL SG BARRIER GATES
The Model SG barrier gate is designed to control industrial vehicular traffic. The gate can be actuated by different
devices, such as radio controls, single- and three-button control stations, digital keypads, coded cards, sensing
loops and telephone entry systems.
The Model SG barrier gate can be used for large industrial vehicular traffic. For high-use applications on wide
driveways, it is recommended to use two model BGU 12, one on each side of the driveway.
The Model SG barrier gate control system is designed to accept most available entrapment devices and has function
switches that will allow for various methods of control.
Mechanical:

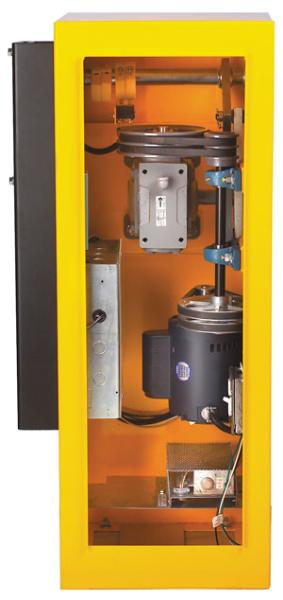

    MODEL BGUS BARRIER GATES
The model BGUS barrier gate can be used for either traffic control or parking applications.
Through switch selections, the gate operator is universal and suitable for all installation and operational functions.
Switch selection allows for full flexibility as to how and when the arm comes down in traffic control situations.


      Mechanical:

• Dual V-belt

• Heavy-duty right-angle gear reducer

• Heavy-duty harmonic link with oil impregnated bronze bushings

• Gate arm clamp with breaker bar


Anti-Entrapment/Detection Devices:

• Operator is pre-wired to accept contact and non-contact detection devices such as reverse edges and/or
  photo electric eyes.


Control Circuit:

• Solid state circuit board, 24 VDC

• Inherent current sensing system

• 15 LEDs for easy setup and troubleshooting

• Built-in maximum run timer and auto close timer

• Master/Slave - simple three-wire connection


Gate Arm:

• 16-foot arm

• Constructed of 5/4 soft wood, painted white with yellow and black warning tape and labels on each side.


ELECTRICAL BGUS:

• 1/2 HP, 115 VAC, single-phase, thermally-protected, open-frame, resilient-mount PSC motor

• Power on/off switch

• Duplex receptacle (115 VAC units only)

• Three-button control station included

• Accessory connections are 24-volt AC or DC

• Easily adjustable cam-operated limit switches

• Motor has manually-resettable overload

• Full system capable for access controls and reversing devices


Options:

• Optional thermostatically-contolled strip heater

• Stainless steel option available with welded, powder coated cabinet for installations in areas where high
  concentration of corrosive material or atmosphere is present


Warning Signals:

• Pre-start audio/visual outputs included
