Maximum Gate Length 45 Feet.
Maximum Gate Weight: 1575 Pounds |
Allstar GSX1000 SERIES: GateStar 1000 1/2 HP Extra Heavy-Duty Slide Gate Operator
- Welded Uni-body frame
- #40 Drive chain on standard speed (25 ft. included)
- #50 Drive chain on high speed (25 ft. included)
- Architecturally designed, long-life cover
- Heavy, key-locked steel cover
- High efficiency, non-slip belt drive
- 1/2 HP instant-reverse, 3-wire motor
- Electronic dynamic braking
- DC solenoid actuated lock mechanism
- Solid-state circuitry and motor control with diagnostic LED readout
- Overload sensing system
- Built-in auto close timer
- Pre-wired loop detector sockets (two provided)
- MVP "smart" radio receiver with FC antenna
- Standard speed UL Listed for UL 325 (Classs I-IV) for U.S. and Canada
- High speed UL Listed for UL 325 (Class IV) for U.S. and Canada
Click Here For More Information 120V
Click Here For more Information 220V |
Maximum Gate Length 18 Feet.
Maximum Gate Weight: 1000 Pounds. |
Allstar GS6000 SERIES: GateStar 6000 1/2 HP Heavy-Duty Swing Gate Operator
- Self contained with integral control box
- Pre-wired loop detector sockets (three provided)
- Easy access to controls
- Welded heavy-duty frame
- Architecturally designed, long-life cover
- Heavy-duty gear box
- 1/2 HP instant-reverse, 3-wire motor
- Electronic dynamic braking
- Adjustable bidirectional torque limiter
- Solid-state circuitry and motor control with diagnostic LED readout
- Overload sensing system
- Easily adjustable limit switches
- Built-in auto-close timer
- Built-in maximum run timer
- Built-in master/second capability
- Built-in shelf for standby power supply
- MVP "smart" radio receiver with FC antenna
- UL Listed for UL 325 (Class I-IV) for U.S. and Canada (120 VAC only)
Click Here For More Information 120V
Click Here For More Information 220V |
Maximum Gate Length 25 Feet.
Maximum Gate Weight: 800 Pounds. |

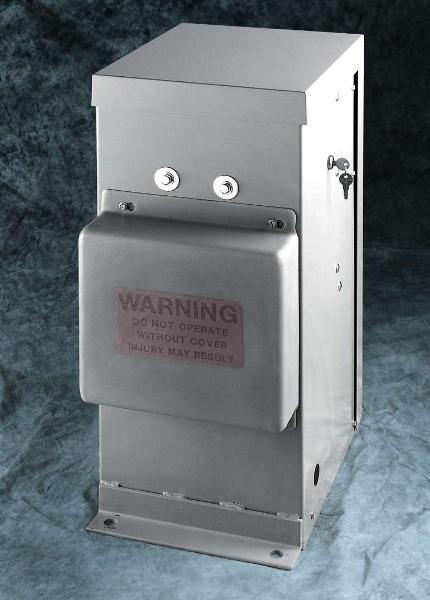

Allstar GSX1000 SERIES: GateStar 1000 1/2 HP Extra Heavy-Duty Slide Gate Operator
- Welded Uni-body frame
- #40 Drive chain on standard speed (25 ft. included)
- #50 Drive chain on high speed (25 ft. included)
- Architecturally designed, long-life cover
- Heavy, key-locked steel cover
- High efficiency, non-slip belt drive
- 1/2 HP instant-reverse, 3-wire motor
- Electronic dynamic braking
- DC solenoid actuated lock mechanism
- Solid-state circuitry and motor control with diagnostic LED readout
- Overload sensing system
- Built-in auto close timer
- Pre-wired loop detector sockets (two provided)
- MVP "smart" radio receiver with FC antenna
- Standard speed UL Listed for UL 325 (Classs I-IV) for U.S. and Canada
- High speed UL Listed for UL 325 (Class IV) for U.S. and Canada
Click Here For More Information 115V
Click Here For More Information 230V |
Maximum Gate Length 35 Feet.
Maximum Gate Weight: 1300 Pounds
|
Allstar LPX1000 SERIES: Leader Plus 1/2 HP Heavy-Duty Slide Gate Operator
- Welded heavy-duty frame
- #41 Drive chain (25 ft. included)
- Architecturally designed, long-life cover
- Heavy duty 10:1 gear reducer allows emergency manual operation without tools
- Fail secure lock standard (gate locks when power off)
- Electronic dynamic braking
- Built-in auto close timer
- Overload sensing system
- MVP "smart" radio receiver with FC antenna
- Built-in operator lock
- Built-in maximum run timer
- Built-in master/second capability
- Solid-state circuitry with diagnostic LED readout
- UL Listed for UL 325 (Class I-IV) for U.S. and Canada (120 VAC only) -HS (Class III-IV only) -230V LPX1000 not listed
Click Here For More Information 115V
Click Here For More Information 220V |
|

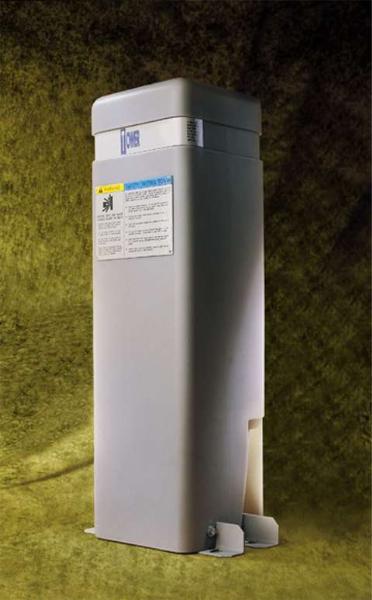

Allstar RSX1000: Tower Plus 1/2 HP Residential Slide Gate Operator
- Steel frame
- #65 Drive chain (18 ft. included)
- Architecturally designed, long-life cover
- Solid-state circuitry and motor control
- Overload sensing system
- Easily adjustable limit switches
- Built-in maximum run timer
- Adjustable auto-close timer
- Built-in master/second capability
- MVP "smart" radio receiver included
- UL Listed for Class I, 110V only
Click Here For More Information 115V
Click Here For More Information 230V |
_4000.jpg)
Maximum Gate Length 16 Feet.
Maximum Gate Weight: 300 Pounds
|
Allstar RSX4000 SERIES: Twist'R Plus 1/2 HP Residential Swing Gate Operator
- Steel frame - mounts to a 4x4 post or with optional pedestal kit (as shown)
- Heavy-duty arm
- Architecturally designed, long-life cover
- Heavy-duty gear box
- 1/2 HP instant-reverse, PSC motor
- Poly V-belt final drive with adjustable torque output
- Easily adjustable limit switches
- Solid-state circuitry and motor control with diagnostic LED readout
- Triac motor control - no relays or contactor
- Built-in auto-close timer
- Built-in maximum run timer
- Built-in master/second capability
- MVP "smart" radio receiver
- UL Listed for UL 325 (Class I) for U.S. and Canada (120 VAC only
Click Here For More Information 115V
Click Here For More Information 230V |
Output Power 500 Watts.
Surge Power 1000 Watts
|

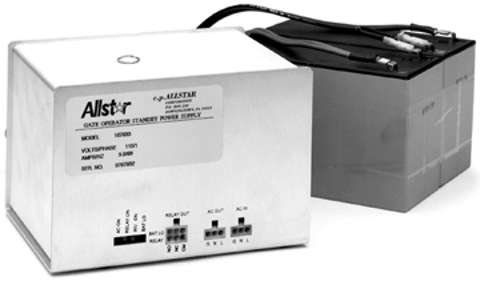

Allstar
Stand-By Power Battery backup Gate Operators-500
Watts System Battery Back up
STAND-BY POWER
SUPPLY
The Allstar SPS-50 Gate Operator Standby Power Supply, Fail Safe is designed to provide back-up power to a gate operator when the main AC supply voltage is interrupted or disconnected. It eliminates the need for a separate motor and control circuit to be mechanically attached to the gate operator. The SPS-50 will provide the power and a signal to the gate operator to open the gate and leave it open until the main power is restored. Once the main power is restored, the SPS-50 will provide a signal to the gate operator and the operator will close (if a timer to close is used). It is not designed to continuously cycle the gate operator. Many local building codes require this type open only back-ups vs. a continuous cycle back-up. |
