Gate Opener Brands:
Access Control Brands:
Same Day Order Processing, In Stock Items Usually Ship in 1-2 Business Days

GATE OPENER BRANDS



Store  :  Ramset Gate Operator | Sliding Gate Opener | Swing Gate Opener |Automatic Gate Opener | Electric Gate Opener

Ramset 30 Swing Gate Operator, Ramset 30 Residential Gate Opener | Ramset Swing No Longer Available


Ramset 30 Swing Gate Operator, Ramset 30 Residential Gate Opener | Ramset Swing

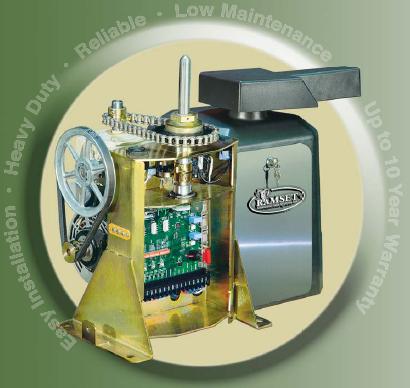

Ramset Gate Openers - Ram 30
GENERAL SPECIFICATIONS:
Max Gate Size 12'     Max Gate Weight 400 lbs.
Motor
light duty, 1/2 Hp, 120VAC, 50/60 hz
Emergency Release   Hand lever Release, Power
Inverter
Dimensions   H:18 1/2" - L:13 1/2" - W:13
1/2"
Travel Speed   Fully opens in 14 seconds

ELECTRONIC SPECIFICATIONS :
Control Board:   A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:
Electronic Reversing Device (ERD): Automatically adjusts to the size of the gate. Automatic Timer:
can be set from 0 to 60 seconds  Master/Slave:   Three wires synchronize bi-parting gates.
station, photo cell, safety edge and magnetic lockstation, photo cell, safety edge and magnetic lock

 Manual  Spec Sheet


Ramset Swing Gate Operator 30 - Residential Gate Opener - Ramset Swing -- No Longer Available



Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Compatible photo cell
More Information here

Ramset 30 gate opener kit

Ram 30 gate Openers kit 1
Include:

  • Ram 30 1/2 Hp gate operator
  • BFT Photo Cell / Photo Eye with Reflector

Ramset 30 (1/2 Hp) Gate Opener kit -- No Longer Available

Ram 30 gate Openers kit 2
Include:

  • Ram 30 1/2 Hp gate operator
  • Receiver 433 MHz range of up to 150 feet ( up to 1500 feet add antenna shown below )
  • Two Mini-Remote Control model 433 MHz 2-Button
  • BFT Photo Cell / Photo Eye with Reflector

Ramset 30 (1/2 Hp) Gate Opener kit -- No Longer Available

Ram 30 gate Openers kit 3
Include:

  • Ram 30 1/2 Hp gate operator
  • Receiver 433 MHz range of up to 150 feet ( up to 1500 feet add antenna shown below )
  • Two Mini-Remote Control model 433 MHz 2-Button
  • BFT Photo Cell / Photo Eye with Reflector
  • EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft

Ramset 30 (1/2 Hp) Gate Opener ki t-- No Longer Available

Ram 30 gate Openers kit 4
Include:

  • Ram 30 1/2 Hp gate operator
  • Receiver 300/310 Dip Switch (( COMPATIBILITY Multicode® 300 MHz ))

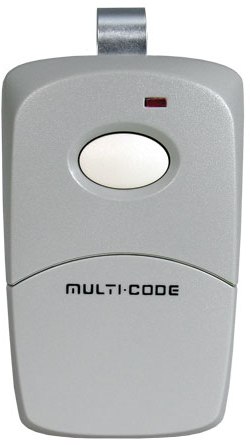

  • Two Chamberlain Remote Control model 300MC 1-Button
  • BFT Photo Cell / Photo Eye with Reflector
  • EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft
  • Wireless keypad RADIOKEYD  433 MHz

Ramset 30 (1/2 Hp) Gate Opener kit -- No Longer Available

Ram 30  1/2 Hp, 120VAC  swing gate operator
GENERAL SPECIFICATIONS:
Max Gate Size  12'
Max Gate Weight   400 lbs.
Motor   light duty, 1/2 Hp, 120VAC, 50/60 hz
Emergency Release   Hand lever Release, Power Inverter
Dimensions   H:18 1/2" - L:13 1/2" - W:13 1/2"
Travel Speed   Fully opens in 14 seconds

Ramset 30 ELECTRONIC SPECIFICATIONS
Control Board:   A state-of-the-art, microprocessor controlled, surface mount pcb with features such as:
Electronic Reversing Device (ERD):  Automatically adjusts to the size of the gate.
Automatic Timer:  can be set from 0 to 60 seconds.
Master/Slave:  Three wires synchronize bi-parting gates.
Electronic Inputs:  for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry system, three button station, photo cell, safety edge and magnetic lock.

Products related to the kits

433MHz Long Range Antenna

Description

433MHz Long Range Antenna for use with our long range receivers

  • Antenna 433MHz
  • magnetic locks
  • electric strikes
  • electric deadbolts

433MHz Long Range Antenna for use with our long range receivers -- $ 19.95





 Mini-Remote Control model 433 MHz 2-Button

Features

Moderne, elegant, sober and light, Mini-Remote can be used on all existing 433 MHz Mini-receiver offered on L.A Ornamental, and is fully compatible with all our transmitters of this same frequency.

  • White shiny casing, chrome-plated contour and buttons
  • Rolling code
  • Easyroll
  • Nominal range : 150 feet in free field

Mini-Remote Control model 433 MHz 2-Button -- $ 17.50



Allen Bradley 60-2728 Reflective Photo Eye

Allen Bradley 60-2728 retro-reflective photo eyes, 12VDC/24VAC/DC NEMA 3,4,4X,6P,1, 30' maximum detection range

Reflective photo eye

  • 3'' diameter reflector
  • 12-24 VDC or 24 VAC
  • 30' sensing distance
  • UL325 Compliant

Allen Bradley 60-2728 Reflective Photo Eye $ 179.00



Garage Door Opener Receiver Kit

This unique product can function at a range of up to 150 feet, making it a great choice for specific industrial or farm uses. You can install this 433 MHz Mini-Universal receiver model for a range of applications. Regardless of location, this receiver will be sure to work when you're within a radius of 150 feet from the receiver.

Kit Include:

  • Receiver 433 MHz range of up to 150 feet
  • Two Mini-Remote Control model 433 MHz 2-Button

Specification
  •  One Channel, 1000 Codes memory
  •   wired output
  •  433 MHz
  • Radius of 150 feet

Our Price: $ 79.95





EMX Lite Preformed Loop 4x8

The Lite Preformed Loop Detector is a ready-to-use loop that works with all
EMX loop detectors. This lightweight preformed loop detector is suitable for
saw cut, tar and concrete installations.
Inquire for special sizes and quotes.
Benefits include:
Easy to install
Electronic lightning protection
Rugged and flexible TPE tubing
Custom sizing  Available



EMX MVP D-TEK loop detector 9V to 220V AC or DC

The EMX MVP D-TEK loop detector is 9V to 220V AC or DC and is designed to be a universal voltage loop detector. The MVP D-TEK solves the problem of not knowing which voltage to have for your installation.

Benefits include:
Universal voltage
Reduced inventory costs
Operates in both fail safe and fail secure modes
Power 9 VDC to 240VAC

EMX D-TEK MVP Multi Voltage Power Universal Loop Detector -- $109.95





EMX Loop detectors HAR-11 Pin Harness

11 pin detector harness for use with our loop detectors and CarSense 101.

EMX Loop detectors HAR-11 Pin Harness -- $ 14.00



American Access System AdvantageDKE 26-100L & 26-100sg

AdvantageDKE line of digital keyless entry offers both post or single gang, surface mount configurations. All models are stand alone and have 100 fully programmable, four digit codes. AdvantageDKE post mount models are housed in heavy metal, powder coated enclosures with stainless steel faceplates.

Features
100 programmable four digit codes
Programmable Personal Master Code
Programmable Latch / Unlatch Code
Night Light
Variable relay output time: 1 – 9 seconds
Audible tone
Non-volatile memory
Power consumption: 25mA @ 24VAC
Limited two year warranty

Our Price: $ 162.00





BFT "POLARIZED" / Retro-reflective Photocell

Specifications:

Polarized Sensor
Red infrared led element
IP-66 water proof/cable gland
PMMA upper casing, anti fog/dew/rain
Round shape reflector-Dia.:80mm
Input volt: AC/DC 12-250V non polarity
Twin colorsled indicator for beam alignment
Tamper switches included
Sensing range 35ft.

BFT Photo Cell / Photo Eye with Reflector -- $ 119.00



EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft

Outdoor Buried Driveway Sensor Alarm Carsense 202 Slim Features • Sensing probe is buried in the ground so it is not noticed by a potential intruder or vandals. • Has wide power supply options and it can be ordered in 9 V to 35 V AC or DC. The low current consumption of 1.5 mA in standby and 15 mA activated make it an excellent choice for solar power applications.

EMX CarSense 202 Slim Outdoor Buried Driveway Sensor 50ft -- $144.95





DOLKWP300318 - 300/318 MHz Dual Frequency Keypad

FEATURES:

• Wireless Keypad: 300 MHz (Compatible with Multicode® 10-dip switch)
OR
• 318 MHz 9-dip switch (Compatible with Allstar® 9931 and Heddolf® P220
  • Stainless steel faceplate
  • Rubber back lit keys
  • Hard wired or wireless
  • User friendly coding
  • Holds up to 99 individual 4-digit codes
  • ABS housing
  • Adjustable relay hold feature
  • LED indicator
  • Surface or Post mount
  • Optional security screw kit available

DOLKWP300318 - 300/318 MHz Dual Frequency Keypad-- $49.95



Standard GooseNeck Pedestal - Aluminum - White

Aluminium goose neck Curb mount The Model GNC-1 Curb Mount Gooseneck is used for easy installation of keypads, telephone entry systems, and other access control products. Features Curb mount configuration Rugged, weather resistant, powder coated rolled Aluminum construction Universal bolt pattern on base plate and faceplate fits all manufacturer's products 5.25" W x 42" H x 15.5" D

Regular Price: $ 149.00
Our Price: $ 119.00

Standard Pad Mount Goose Neck Pedestal - Aluminum

2" X 2" X 42" - White


Standard GooseNeck Pedestal - Aluminum - Black

Aluminium goose neck Curb mount The Model GNC-1 Curb Mount Gooseneck is used for easy installation of keypads, telephone entry systems, and other access control products. Features Curb mount configuration Rugged, weather resistant, powder coated rolled Aluminum construction Universal bolt pattern on base plate and faceplate fits all manufacturer's products 5.25" W x 42" H x 15.5" D


Regular Price: $149.00
Our Price: $ 119.00

Standard Pad Mount Goose Neck Pedestal - Aluminum

2" X 2" X 42" - Black
