Store  :  Elite Circuit Board,Eagle Electronic Board,Main Board,Control Board,Power Master

Eagle Diamond Board, Eagle Main Control Board for Eagle Gate Operators

Eagle Diamond Board, Eagle Main Control Board for Eagle Gate Operators

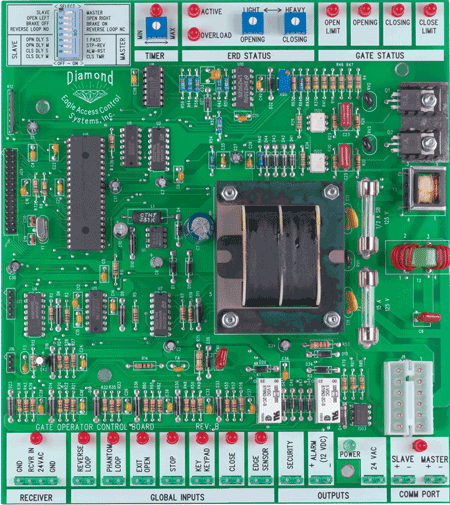

The Eagle Diamond Control Board is for all Eagle Gate Operators ( Gate
Openers ) whether you have a Sliding Gate Opener Or A swing Gate Opener. If is a Eagle The control Board Should be The Diamond Board. Inspect the Board carefully there is no returns on Electronic Equipment.


Regular Price: $550.00
Our Price: $395.00

Eagle Diamond Main Control, Eagle Electronic Board for Gate Openers





Eagle 1 Circuit Board, Eagle 2 Control Board

All Eagle gate operators use the state of the art Eagle Diamond Control Board.

This board includes many new features that cannot be found on other gate operators.
The Feature Selector uses an eight station switch that allows selection of the standard features and customized installation settings. The switch description is as follows:

Switch 1 = Slave/Master - Sets the operator to work as a Master or a Slave.
Switch 2 = Gate Opening - Designates left or right opening.
Switch 3 = Motor Brake - If the "on" position is selected, the gate will stop instantly when on the limit switches. This is useful on uphill/downhill applications and on all Fail-Safe operators.
Switch 4 = Reverse Loop - Sets the reverse loop to be "normally" open or to "normally" close. It is useful in Fail-safe applications.
Switch 5 = One Pass (on/off) - This tailgating feature works with the safety loop to allow only one car to pass. After the car passes, the gate closes instantly. If a second car approaches the gate stops. The operator resumes closing after the car leaves.
Switch 6 = Stop-Reverse - This radio feature allows the transmitter to work as a three button station and is useful for a partial opening. If selected, the first command will open the gate, the second will stop the gate, and the third will close the gate.
Switch 7 = Alarm Reset (on/off) - If the "on" position is selected (after five minutes "shut down" time period) the operator will reset and any input will be accepted. Normally, the power must be turned off to reset.
Switch 8 = Close Timer (on/off) - Sets the timer to close on the "on" or "off" position.

The Eagle Diamond Control Board uses an unique Master/Slave system that requires only two wires. In addition, the
Diamond board has global inputs. These inputs give the installer the option to connect accessories to the Master or to
the Slave. Another stand out feature is the "open and close delay", this function is easily selected on the Slave board.
On the Master Control one has the option to select the following features: one pass mode, stop-reverse mode, alarm
reset mode, and close timer. The Slave Control was uniquely designed to communicate to the master board
all of the delay functions.

Switch 5 = Open Delay Slave (on/off) - Selecting the dipswitch to the "on" position delays the slave operator by one second on the open cycle. This is useful with a magnetic lock application.
Switch 6 = Open Delay Master (on/off) - Selecting the dipswitch to the "on" position delays the mast operator by one second on the open cycle. This is useful with a magnetic lock application.
Switch 7 = Close Delay Slave (on/off) - Selecting the dipswitch to the "on" position delays the slave operator by 1-6 seconds on the close cycle. You can set the delay time desired by adjusting the delay potentiometer.
Switch 8 = Close Delay Master (on/off) - Selecting the dipswitch to the "on" position delays the master operator by 1-6 seconds on the close cycle. You can set the delay time desired by adjusting the delay potentiometer.

The Eagle Diamond Control Board uses LEDs to indicate the status of the inputs and outputs of the gate operator.

The Diamond board has several unique safety features. In case of overload, if the motor reaches the stall amp for 3 seconds, it will automatically shut down. If the gate hits an obstruction while closing, it will re-open. If it hits an obstruction while opening, it will stop, reverse 6 inches and stop again. The sensitivity is adjustable separately for the open and close cycle. If the gate hits an object twice while closing or opening, the system will shut down for 5 minutes. On the Diamond board you have two options of reset mode. Selecting the "off" position will require a manual reset of the board if the previous happens. However, by selecting the "on" position, the system will automatically reset itself. Global Inputs allow the installer the option to connect accessories to the Master or to the Slave - key switch, keypad, exit loop, phantom loop, reverse loop, edge sensor, open, stop, and close. The Receiver terminal is mounted on the control box for easy installation and is pre-wired for a 3-wire or a 4-wire receiver. The Diamond board's Outputs include on board 24VDC for MAG Lock, alarm, and 24VAC auxiliary power. The Diamond board has an Adjustable
Timer that can be set from 1 to 6 seconds. The maximum run time is 6 seconds, after which if the gate hasn't reached the open or close limit it will automatically shut down.
