Store  :  Linear Remote Control Multy Code Garage Door Remote Control Opener Receiver

Multi-Code 308302: 2-Channel Key Ring Transmitter, MultiCode 308302 Remote Control


Multi-Code 308302: 2-Channel Key Ring Transmitter, MultiCode 308302 Remote Control

Multi-Code 308302: 2-channel Key Ring Transmitter - 310 MHz -- $24.50




 Manual

 Spec Sheet

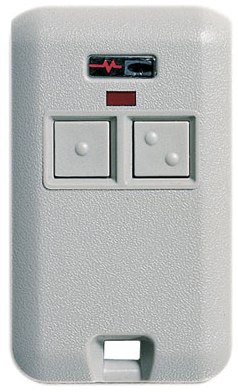

Multi-Code 308302: 2-Channel Key Ring Transmitter
Miniature slim line two-button two-channel key ring transmitter, 12-volt battery powered, test/operate LED, each button can send any of the 1024 selectable codes, Stanley compatible

The Multi-Code 308302 2-Channel Key Ring Transmitter is a miniature style transmitter designed for automatic door and gate operator applications.

The Multi-Code 308302 is a two-channel device. Pressing the left button on the transmitter will send a channel one signal. Pressing the right button on the transmitter will send a channel two signal. The buttons feature raised dimples for easy, or vision-impaired identification. The transmitter has a red test/operate indicator and is powered by a 12-volt battery. A molded-in hole in the case is for attaching the transmitter to a key ring.

The transmitter is Multi-Code format with two 10-position coding switches providing 1,024 possible codes for each channel. Independent coding supports activation of a common gate and a private door. The transmitter will only activate receivers set with the same code.

The Multicode 308302 is compatible with 310 MHz Stanley receivers and Model 109950, 302850, and 309013 receivers.

Features

  • Compatible with 310 MHz Stanley and Multi-Code receivers
  • Powered by 12-volt battery
  • Easy access to battery and coding switches
  • 1,024 codes for each channel
  • RF frequency: 310 MHz
  • 1.5" W x 2.5" H x 0.625" D
  • Order number: MCS308302
