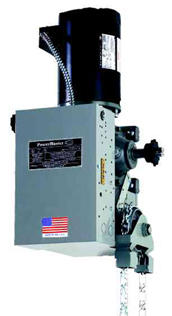

Model "MG" - Gear Reduced Hoist Operator

PowerMaster Model “MG” operators are designed for use on Sectional Doors with High Lift or Vertical Lift and Rolling Service Doors and Grilles.

Supply PowerMaster model "MG" Industrial Duty Hoist type operator rated ______HP, ____VOLTS, ____ PHASE, for use on Sectional Doors with High Lift or Vertical Lift and Rolling Service Doors and Grilles . Primary speed reduction shall be by means of an industrial gear box with bronze worm gear in an oil bath.

Motor shall be of the high starting torque, continuous duty industrial type, protected from overload by a current sensing or thermal type overload device. Motor controller shall be a heavy duty, full voltage, across the line, magnetic reversing contactor, that is mechanically and electrically interlocked. Electrical components shall be installed in a NEMA 1 enclosure integral to the operator. A transformer shall be provided to reduce control voltage to 24 VAC. Separate terminal strips shall be provided for connection of power supply line and all control devices. Operator shall be wired for an Open/Close/Stop control station.

 Installation Manual

 Spec Sheet

Control circuit shall provide instant reverse motor wiring on 1Ø operators. Positive chain driven, rotary type limit switches shall be provided to limit full open and close travel of door. Limit switch adjustment shall not be affected by removal of motor or by manual operation of door. A floor level manual hoist chain shall be provided for emergency operation of door. An electrical interlock switch shall be provided to disable control circuit while manual hoist chain is engaged. Final drive chain shall be a #50 or larger roller chain. Operator shall be capable of right or left hand mounting in either a vertical or horizontal position.

Electrical Specifications:

  • High Starting Torque Motor with Full Overload Protection
  • Solid State Circuitry with Power and Program Feedback LED’s
  • On Board Open/Close/Stop buttons for service and adjustments
  • Terminals labeled and grouped by function
  • Auto-Detect monitored photo beam for simplified installation
  • Selectable Operating modes B2, C2, D1, E2, T, TS
  • Field adjustable built in functions including: timer to close, mid-stop, delay on reverse, lock bar sensing, maximum run time, etc.

Mechanical Specifications:

  • For Use on Standard Lift Sectional Doors, Rolling Service Doors & Grilles
  • Mechanically Self Locking Gear Reducer (Oil Bath Type)
  • Heavy Duty #50 Roller Chain and drive sprocket Included
  • Adjustable Torque Limiting Clutch
  • Floor Level Disconnect w/Chain Hoist Assembly & Electrical Interlock (For Manual Operation)
  • Baked on Grey Powder Coat finish

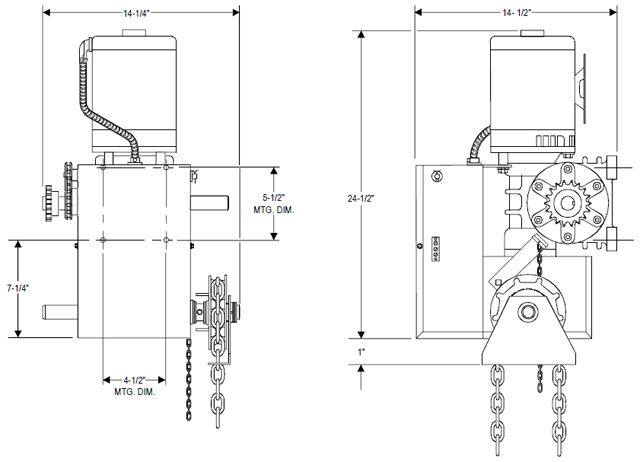

Powermaster MG Operator Exploded View



Description Part Number Price
PowerMaster MG-51, 1/2 HP, 115V, 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-51 Our Price: $1,241.40
PowerMaster MG-52, 1/2 HP, 208V /230V , 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-52 Our Price: $1,303.73
PowerMaster MG-53, 1/2 HP, 208V /230V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-53 Our Price: $1,293.34
PowerMaster MG-54, 1/2 HP, 460V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-54 Our Price: $1,298.53
PowerMaster MG-71, 3/4 HP, 115V, 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-71 Our Price: $1,303.73
PowerMaster MG-72, 3/4 HP, 208V /230V , 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-72 Our Price: $1,303.73
PowerMaster MG-73, 3/4 HP, 208V /230V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-73 Our Price: $1,324.50
PowerMaster MG-74, 3/4 HP, 460V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-74 Our Price: $1,349.43
PowerMaster MG-101, 1 HP, 115V, 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-101 Our Price: $1,355.67
PowerMaster MG-102, 1 HP, 208V /230V , 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-102 Our Price: $1,376.44
PowerMaster MG-103, 1 HP, 208V /230V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-103 Our Price: $1,399.30
PowerMaster MG-104, 1 HP, 460V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-104 Our Price: $1,428.38
PowerMaster MG-151, 1 1/2 HP, 115V, 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-151 Our Price: $1,542.66
PowerMaster MG-152, 1 1/2 HP, 208V /230V , 1 Phase, Industrial Duty Gear Reduced Hoist Operator MG-152 Our Price: $1,557.20
PowerMaster MG-153, 1 1/2 HP, 208V /230V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-153 Our Price: $1,567.59
PowerMaster MG-154, 1 1/2 HP, 460V , 3 Phase, Industrial Duty Gear Reduced Hoist Operator MG-154 Our Price: $1,588.36
PowerMaster MG-203, Industrial Duty Gear Reduced Hoist Operator MG-203 Our Price: $1,816.90
PowerMaster MG-204, Industrial Duty Gear Reduced Hoist Operator MG-204 Our Price: $1,837.68
PowerMaster MG-303, Industrial Duty Gear Reduced Hoist Operator MG-303 Our Price: $3,557.98
PowerMaster MG-304, Industrial Duty Gear Reduced Hoist Operator MG-304 Our Price: $3,557.98
