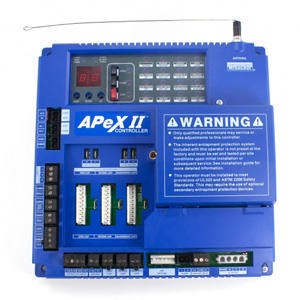

OCSO APEX Circuit Board, APEX Control Board for OSCO Gate Openers

OCSO APEX Circuit Board, APEX Control Board for OSCO Gate Openers

Linear / OSCO Apex Circuit Board -- $375.00


The APeX™ is designed to work with all of Linear's OSCO brand gate operators, and to replace current circuit boards with a new design that is simpler and sleeker, while also integrating between the gate operator and the access control system.

The new APeX™ gate operator controller has been designed to operate with Linear's OSCO brand of slide, swing gate operators and barrier gate operators. It features on-board, low-voltage surge protection for lightning protection on all inputs. It also has plug-in loop detector capability (open, shadow/reset, reversing), as well as pluggable, European-style field wiring connectors. There are LED diagnostic lights and a built-in MegaCode radio that can program up to 40 handheld transmitters and two MGT gate edge transmitters, as well as an integrated three-button station (momentary contact: Open, Close, Stop). To simplify dual gate installation and operation, the APeX™ is networkable, and allows accessory devices to be wired to either machine in a dual gate application. The APeX™ controller also features automatically resetting fuses, and there are not dipswitches or potentiometers to set. It has a dual seven segment LED display for programming and diagnostics. The APeX™ controller will also bring soft-start/soft-stop capability to OSCO's line of commercial DC battery backup gate
operators. The APeX™ controller meets all UL 325 requirements and is CUL listed.

The APeX™ controller puts Linear/OSCO gate operators ahead of the competition in terms of diagnostics, aesthetics, and communications - features that offer a level of installer convenience and flexibility unprecedented in the industry", said Randy Baker, Linear's OSCO Product Line Manager "It easily integrates with both the gate operators and the access control systems, and offers a new level of simplicity for installers and users".

The APeX™ is currently available on the OSCO slide gate models (SLC, SLR and SLD) and swing gate models (SWC, SWR and SWD). Throughout 2008, the APeX™ controller will be introduced to the rest of the Linear/OSCO gate operator product line, including barrier gates (BGU, BGU-D, BGUS and SG), variable speed industrial swing gate operators (VS-GSWG), commercial/industrial slide gate operators (HSLG, GSLG-A), and variable speed industrial slide gate operators (VS-GSLG).

OSCO New APEX Control Board Features:
Completely plugable design
Easy-to-understand graphics
Plug-in loop detectors
No fuses, no potentiometers, no DS
Enhanced LED diagnostic lights
Single board design for 1PH AC
Hybrid machine capability
Built-in surge protection
Capability for 2 assignable MGT's
Accepts up to 40 Transmitters
Individual transmitter delete function
Absolute current sense adjustment w/real time monitoring
Networked units - instead of master slave = added flexibility
Dual gate stagger programmability standard
Built-in charge regulator circuitry for DC and solar (No more DC
charge board)
Software control of alarm for added versatility and diagnostics
PWM DC motor board
Compatible w/current 3 phase and DC motor boards

OSCO New APEX Control Board
Low Voltage Input
DC Accessory Power Out
Obstruction Reset Button
Networked Dual Gate Connection Single
Button Input
Open Only Input
Fire Department Input
External 3-Button Input

Open Obstruction
Close Obstruction
Loop Connections
Limit Switches
Alarm Output
Auxiliary Relay
AC Motor Plug
