Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

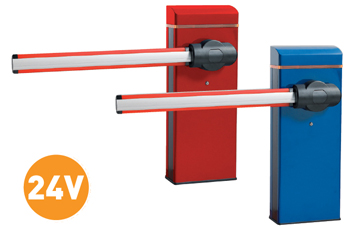

BFT Michelangelo Series


BFT Michelangelo Series



Electromechanical Operator For Road Barriers



A MODEL FOR EVERY NEED

  • Possibility of closing passages up to 8 m.
SMART TECHNOLOGY
  • Electronic adjustment of the limit switches.
  • The new position of the control panel makes it possible to operate in a vertical position.
SAFE USE
  • The barrier features a very stout structure to guarantee greater protection from vandal attacks and constant reliability in use.
SIMPLER INSTALLATION.

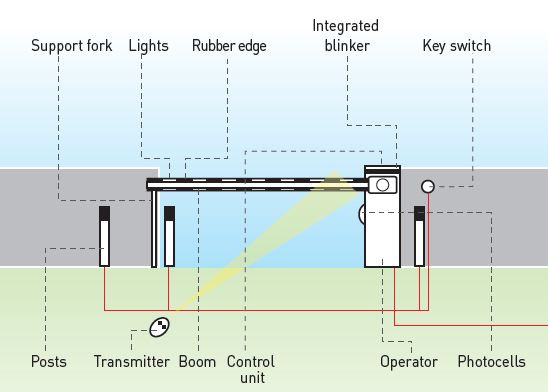

  • The blinker and the support for the photocells are integrated in the frame (optional), the lights are integrated in the boom (optional).
  • Cabling is simplifi ed by means of the ducting for housing the cables themselves.



 Installation Manual

 Spec Sheet




Model Voltage Boom Length Price
P941006 00002 MICHELANGELO 60 (red)
24 V
6 m Our Price: $2,132.91
P941002 00002 MICHELANGELO 60 (blue)
24 V
6 m Our Price: $2,132.91
P941007 00002 MICHELANGELO 80 (red)
24 V
6 m Our Price: $2,006.55
P941004 00002 MICHELANGELO 80 (blue)
24 V
6 m Our Price: $2,006.55



Technical Features

  MICHELANGELO 60 MICHELANGELO 80
Control panel LIBRA C MV (incorporated) LIBRA C MV (incorporated)
Reversible/irreversible operator irreversible irreversible
Power supply 24 V 24 V
Absorbed power 0.4 hp (300W) 0.4 hp (300W)
Opening and Closing Time 6 s (19.6’) 8 s (26.2’)
Impact Reaction electronic torque limiter integrated in the control panel electronic torque limiter integrated in the control panel
Type of Limit Switches electronic opening/closing electronic opening/closing
Manual Release fast key release fast key release
Operating cycle very intensive use very intensive use
Environmental conditions from 5°F to + 140°F from 5°F to + 140°F
Degree of protection IP24 IP24
Operator weight without Boom 680 N (150lb) 680 N (150lb)
Dimensions see below see below
Fuse values libra CMV 1A T 1A T

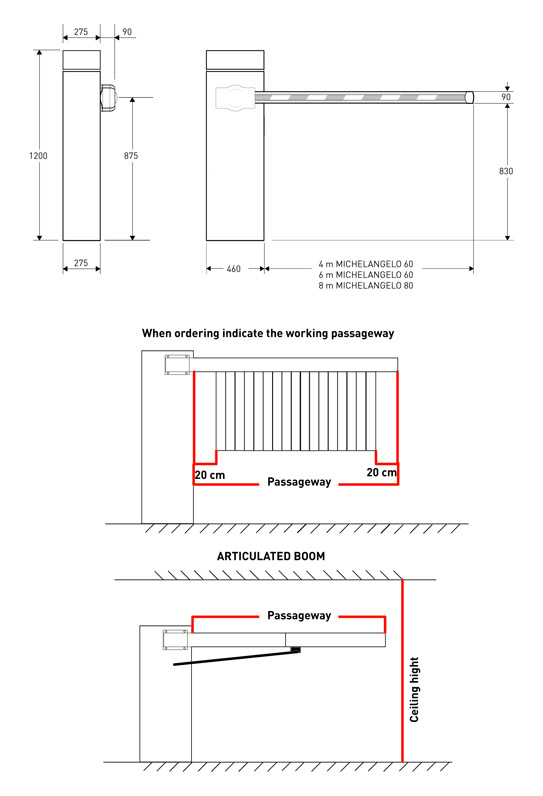

Dimensions

Residential, Apartment-Block and Industrial Use
