Store  :  BFT Gate Operators - BFT Swing Gate Openers, BFT Slide Gate Openers, Arm Barriers

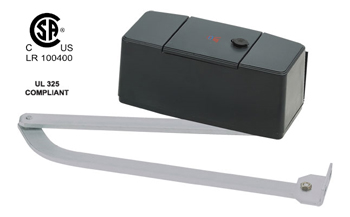

BFT Joint




Electromechanical Operator For Swing Gates

GENERAL OUTLINE

This controller is suitable for residential use and has been designed for swing gates with particularly large gate posts. The drive arm, built with a special anti-shearing shape, allows the leaves to be moved when the controller is considerably out of place with respect to the fulcrum of the leaves. The non-reversible electro-mechanical gearmotor maintains the stop during closing and opening. The release lever, fitted in each controller and situated inside the door fitted with personalised key, allows the manual manoeuvre to be easily carried out

 Installation Manual

 Spec Sheet

BFT JOINT UL/CSA 120V 60HZ w/ Aries Control Panel

Our Price: $ 699.74

BFT Joint Swing Gate Operator 110V Handles Gates 550lbs 10 feet Long ( Operator Only )

Our Price: $ 534.27

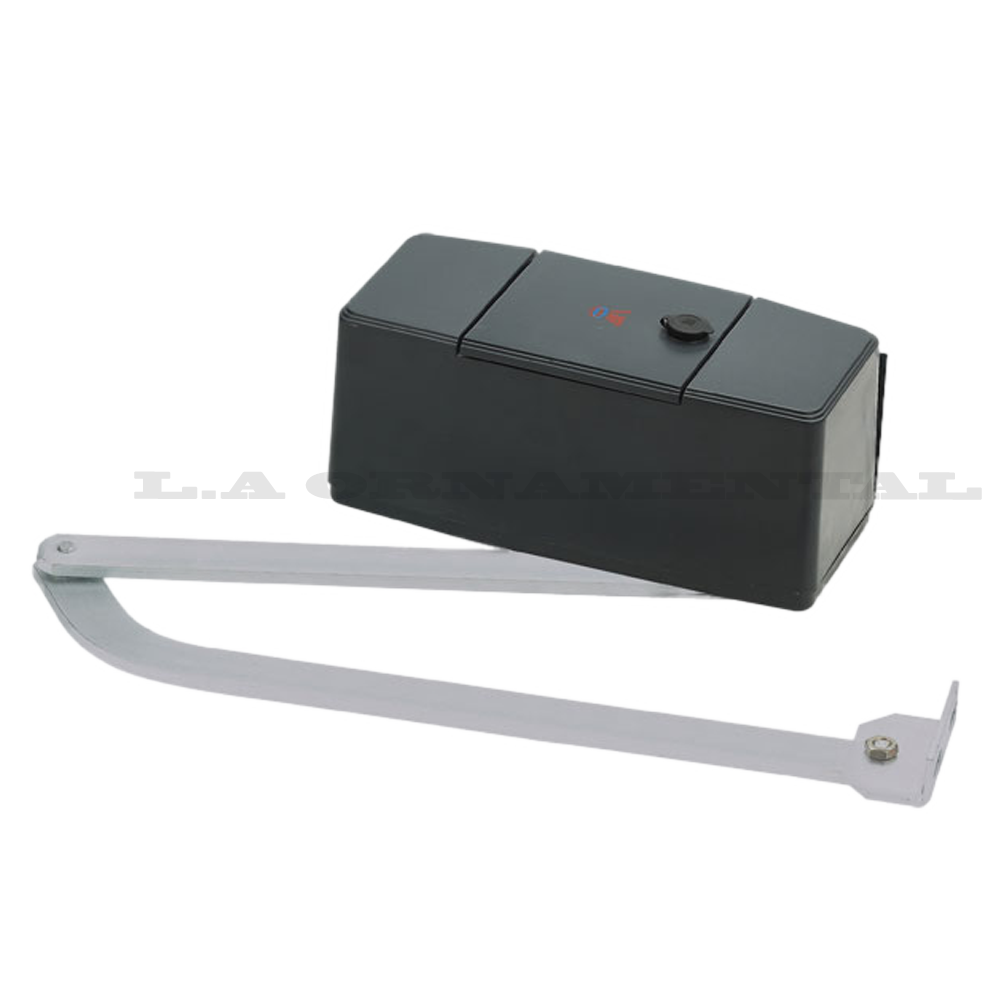

JOINT Electromechanical swing gates

JOINT: Provides an in dispersible automation system for swing gates installed on particularly large pillars. The drive arm with its special anti-shearing shape allows the leaves to be moved when the controller is positioned well away from their fulcrum. The irreversible electromechanical reduction gear keeps the gate locked in the closing and opening positions.

The emergency release mechanism is carried out by operating the release lever of each controller, located inside the hatch which is provided with a personalized key. Joint must be combined with a control unit with a torque limiter such as the Aries model control unit. The adjustable limit micro switches and capacitor are connected to the motor.

Model Price
BFT Joint Single Swing Gate Operator Kit 110V Handles Gates 550 lbs 10 feet long Kit includes (1 Motor with Rigal 5 Control Board Receiver, 2 Remote Controls, and Reflective Photocell) Our Price: $1,404.00
BFT Joint Double Swing Gate Operator Kit 110V Handles Gates 550 lbs 10 feet long Kit includes (2 Motor with Rigal 5 Control Board Receiver, 2 Remote Controls, and Reflective Photocell) Our Price: $1,950.00

SAFE USE

  • Quick and easy manual release.
  • Adjustable limit switches.
  • Maximum recommended offset 12” (could go to 18”).
  • 24V DC and 120V AC electromechanical operators for residential use for gate up to 550Lbs and 10Ft.
  • Incorporated electrical limit switches.
  • Torque limiter from the Rigel 5 control panel.
  • Adjustable slow-down on opening and closing.
  • Opening up to 125 Degrees in 15 seconds.



Technical Features

Control panel
ARIES UL/CSA
Reversible/irreversible operator irreversible
Power supply 120 V 60 Hz single-phase
Absorbed power 0.4 hp (300 W)
Thermal protection integrated
Opening and Closing Time 15 s
Impact Reaction torque limiter integrated in the control panel
Lock mechanical opening/closing
Manual Release lockable door and release knob
Operating cycle intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP44
Operator weight 35 lb (~16 kg)
Dimensions see below

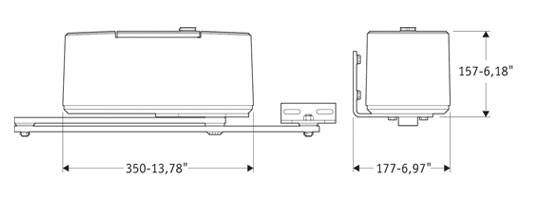

Dimensions

Residential Use
