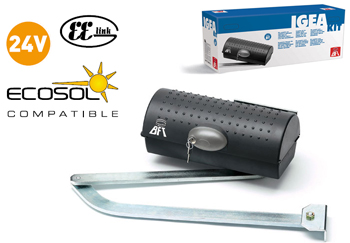

BFT Igea BT

BFT Igea BT



Electromechanical Operator For Swing Gates



A MODEL FOR EVERY NEED

  • Great versatility thanks to the levers that permit installation on large sized pillars, opening up to 125°. Maximum offset 12” (30 cm).
SMART TECHNOLOGY
  • Control unit compatible with the EELink protocol.
SAFE USE
  • This version powered at 24V is specially designed for simpler and faster installation in compliance with latest safety standards.
  • Thanks to the antisquashing system, the operator reverses motion and prevents damage to people and vehicles in the event of contact.
SIMPLER INSTALLATION
  • BFT’s system of coded limit switches makes it possible to reduce the complexity of wiring the low-voltage motors: a single wire is carried to the control panel instead of the three or five normally required, thereby increasing the simplicity and speed of installation. Furthermore, the system is able to automatically distinguish between the open limit switch and the closed one and hence prevent wasted time and wiring errors.



Installation Manual

Spec Sheet

• 24V DC and 120V AC electromechanical operators for residential use for gate up to 550Lbs and 10Ft.
• Incorporated electrical limit switches; Electronic obstruction detection device from the control panel.
• Adjustable slow-down on opening and closing.
• Opening up to 125 Degrees in 15 seconds.



Model Voltage Leaf Weight Leaf Length Price
P935070 00002 IGEA BT
24 V
 up to 550 lb (250 kg) up to 10' (3 m) Our Price: $469.77
R935229 00003 IGEA BT KIT 1 OPERATOR
24 V
 up to 550 lb (250 kg) up to 10' (3 m) Our Price: $1,090.39
R935229 00004 IGEA BT KIT 2 OPERATORS
24 V
 up to 550 lb (250 kg) up to 10' (3 m) Our Price: $1,520.62



Technical Features

Control panel LIBRA UL R
Reversible/irreversible operator irreversible
Power supply 120 V 60 Hz single-phase
Absorbed power 0.05 hp (40 W)
Thermal protection integrated
Opening and Closing Time 15 s
Impact Reaction torque limiter integrated in the control panel
Lock mechanical opening/closing
Manual Release release knob with personalised key
Operating cycle intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP44
Operator weight 35 lbs (~16 kg)
Dimensions see below
Fuse value libra board transformer 2A T
Fuse value libra board logic board 1A T

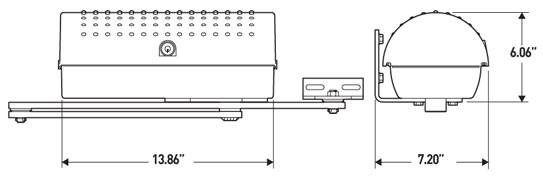

Dimensions

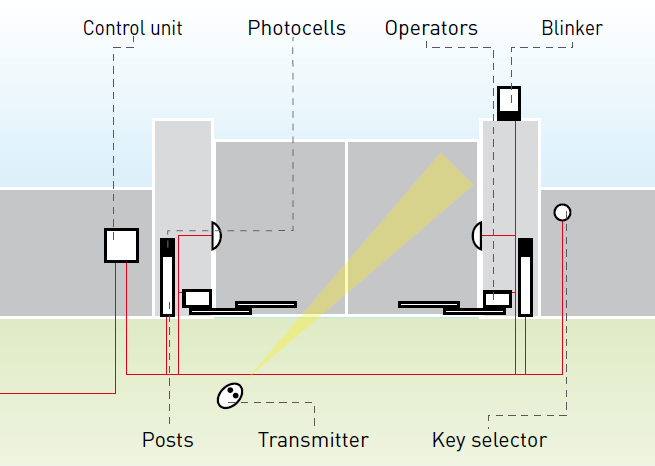

Residential Use
