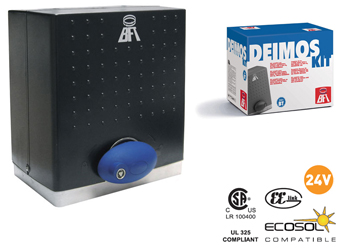

BFT DEIMOS BT UL/CSA

BFT DEIMOS BT UL/CSA



Electromechanical Automation For Rack Sliding Gates



SMART TECHNOLOGY

  • Electromechanical microswitches that control
    the end of stroke.
  • Incorporated two-channel rolling code radio receiver.
  • Control unit with self-learning and self-diagnostic functions.
  • Control unit compatible with the EELink protocol.
SAFE USE
  • This version powered at 24 V has been specially designed for simpler and faster installation in compliance with latest safety standards.
  • Thanks to the obstruction sensing device, the operator reverses motion and prevents damage to people and vehicles in the event of contact.
SIMPLER INSTALLATION
  • Incorporated control unit positioned frontally for easier accessibility.
  • Control unit programming by LCD display
  • Optional battery back-up can be fitted within the operator casing.



Installation Manual

Spec Sheet


• Electromechanical limit switches (magnetic as option) and electronic slow down system on opening and closing.
• Control unit with obstruction detection and built-in receiver.
• Opening time of 20 foot sliding gate: 30 seconds.



Model Voltage Leaf Weight Price
R925228 00003 DEIMOS BT KIT UL/CSA (1 MITTO)
24 V
 up to 1100 lb (500 kg)
KR925228 00003 DEIMOS BT KIT (1 MITTO + reflective beam)
24 V
 up to 1100 lb (500 kg) Our Price: $569.00
K2R925228 00003 DEIMOS BT KIT UL/CSA (1 MITTO + FL130B)
24 V
 up to 1100 lb (500 kg) Our Price: $589.00



Technical Features

Control panel QSC D UL (incorporated)
Reversible/irreversible operator irreversible
Power supply 120 V 60 Hz single-phase
Absorbed power 0.1 hp (70 W)
Thermal protection integrated in the control unit
Leaf speed 7.9 ips (12 m/min)
Output rotational speed 79 rpm
Pinion pitch 4 mm (14 teeth), 18 teeth pinion optional
Impact reaction electronic torque limiter
Limit switches electromechanical
Manual release mechanical release with knob
Operating cycle intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP24
Operator weight 16 lbs (~7 kg)
Dimensions see below
Fuse value (QSC board tansformer) 0.63A T
Fuse value (QSC board logic unit) 2A T

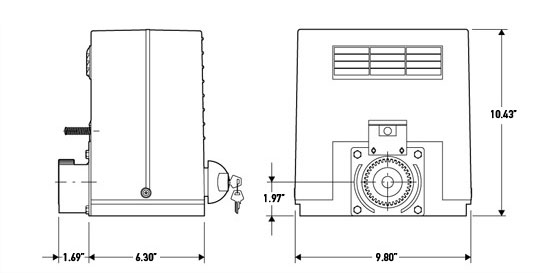

Dimensions

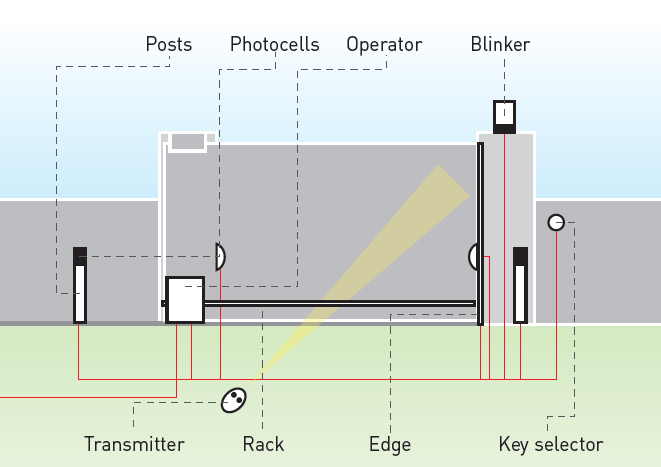

Residential Use
