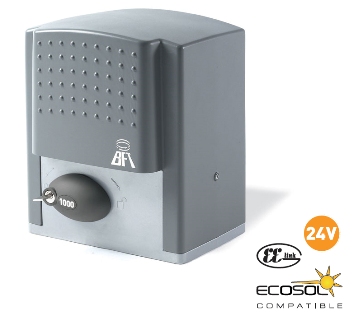

BFT ARES 1000 - ARES 1500

BFT ARES 1000 - ARES 1500



Electromechanical Automation For Rack Sliding Gates



THE SLIDING GATE OPERATOR OFFER IS NOW EVEN WIDER

  • ARES 1000 and ARES 1500 operator widen the BFT range of sliding gate operators. Classed amongst the “medium-heavy” weight range, they integrate with existing products to obtain an operator that is perfectly suited to the gate every time.
LOW VOLTAGE MOTOR
  • The 24 V electrical motor guarantees maximum accuracy in torque and speed control on the one hand, and on the other makes it suitable for intensive gate use, even in industrial installations.
  • Optional battery back-up can be fi tted within the operator casing.

Installation Manual

Spec Sheet



Model Voltage Leaf Weight Price
P926183 00001 ARES 1000
24 V
 up to 2,200 lbs (~1,000 kg) Our Price: $818.75
P926182 00001 ARES 1500
24 V
 up to 3,300 lbs (~1,500 kg) Our Price: $929.25



Technical Features

  ARES 1000 ARES 1500
Control panel HQSC-D (incorporated) HQSC-D (incorporated)
Reversible/irreversible operator irreversible irreversible
Power supply 120 V 60 Hz single-phase 120 V 60 Hz single-phase
Absorbed power 240W 250W
Thermal protection integrated in the control unit integrated in the control unit
Leaf speed 5.9 ips (9m/min) 5.9 ips (9m/min)
Output rotational speed 39 rpm 39 rpm
Pinion pitch 4 mm (18 teeth) 4 mm (18 teeth)
Impact reaction electronic torque limiter electronic torque limiter
Limit switches electromechanical electromechanical
Manual release mechanical release with knob mechanical release with knob
Operating cycle intensive use intensive use
Environmental conditions from 5°F (-15°C) to 140°F (+60°C) from 5°F (-15°C) to 140°F (+60°C)
Degree of protection IP24 IP24
Operator weight 44 lbs (~20 kg) 44 lbs (~20 kg)
Dimensions see below see below
Fuse value (H-qsc board tansformer) 0.63A T 0.63A T
Fuse value (H-qsc board logic unit) 2A T 2A T

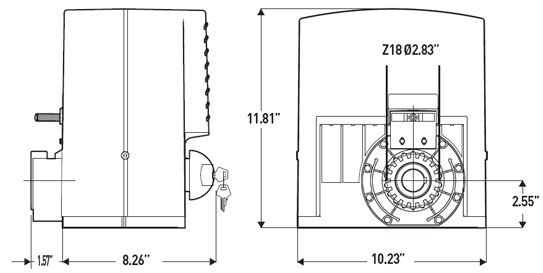

Dimensions

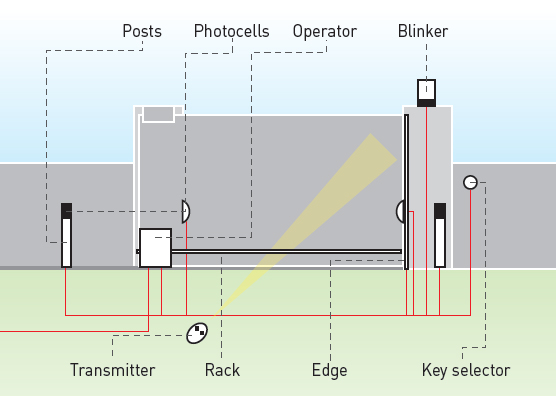

Collective and Industrial Use
