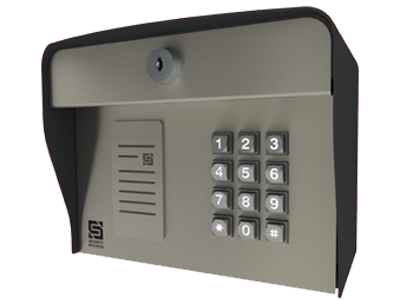

American Access System Keypad Controller Entry System 24-1000

American Access System Keypad Controller Entry System 24-1000

American Access System AdvantageDK II 24-1000 Keypad Controller Entry System

Available with 1000, five digit code configurations, the AAS AdvantageDKS II is one of the most cost effective, non PC based keypad controllers on the market. Each master controller is designed to operate two 26 bit, wiegand output keypads (see the AAS RemotePro KP line), where all programming and auditing is done from the master station. Learn more

Regular Price: $729.00
Our Price: $408.90

 24-1000 Manual


 24-1000d Manual


 Spec Sheet



American Access System AdvantageDK II 24-1000, 24-1000i, & 24-1000d
Available in 100, 500, 1000 or 2000 code configurations, five digit code configurations, the AAS AdvantageDKS II is one of the most cost effective, non PC based keypad controllers on the market. Each master controller is designed to operate two 26 bit, wiegand output keypads (see the AAS RemotePro KP line), where all programming and auditing is done from the master station.

The AdvantageDKS II master controllers are available in three configurations: post mount, desk mount or in a raintight enclosure. Post mount masters (also available with intercom capability) are housed in heavy metal, powder coated enclosures with stainless steel faceplates and metal keypads. The desk cabinet (interior use only) is enclosed in a black metal housing, while the raintight unit is mounted inside of a standard electrical raintight enclosure.

Each AdvantageDKS II master station allows the user to randomly generate up to 2000, five digit codes and automatically enter them into memory. These codes can then be printed out using an RS-232 serial port printer, AAS #21-045 or #21-047. The controller will also report time, date, code number entered, gate activated and valid / invalid code with the option of having the invalid codes printed in red using the #21-047 printer.

In addition, the post mount master station can act as an additional keypad, yet still have two “slave” keypads wired to it, creating the ability to have three access keypads. (note: there are only two relays, even when there are three “active” keypads).

Features
Programmable five digit codes available: 2000
Two slave keypad ports, 26 bit Wiegand
Compatible with AAS RemotePro KP series
Programmable Personal Master Code
Programmable Latch / Unlatch Code
Programmable Sleep Code
Split-relay function:
allows user t o activate two separate doors / gates
Three strikes – you’re out
True Anti Pass Back
1000 code transaction buffer
LED indicators
Audible tone
Non-volatile memory
Optional camera
Limited two year warranty
