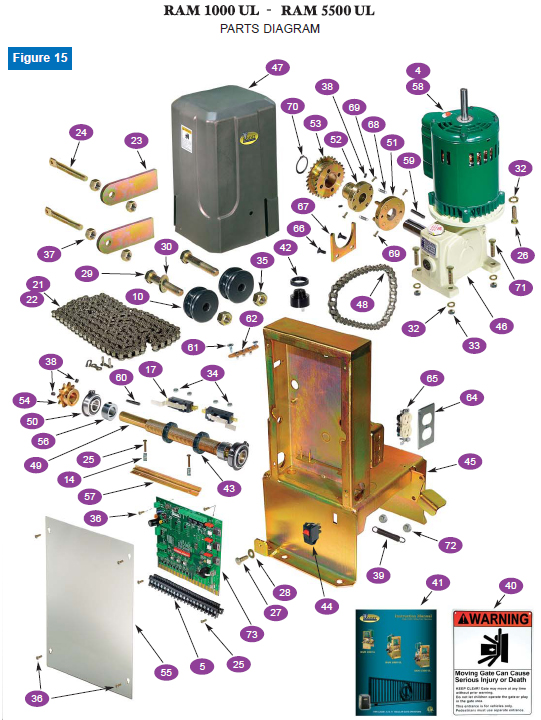

Ramset Operator Parts - RAM 5500 Operator

Ramset Operator Parts - RAM 5500 Operator



Item

Description

Part Number Price
5 20 Pin Edge Connector 50-039
10 3 1/2" UHMW Idler Pulley 50-058
14 1" Tension Spring 50-064
17 Limit Switch 00h-3 50-069
22 # 40 x 20' Gate Chain 50-088
23 3/8" x 2" x 7" Chain Bracket 50-089
24 1/2" x 4" Chain Bolt 50-090
25 # 6 x 1" Machine Screw 50-091
26 3/8"-16 x 1 1/4" Hex Head Bolt 50-092
27 5/16"-18 Unc x 3/4" Hex Head Bolt 50-095
28 5/16" Flat Washer 50-097
29 5/8"-11 x 3 1/2" Hex Head Bolt 50-098
30 5/8" Flat Washer 50-099
32 3/8" Lock Washer 50-101
33 3/8" Hex Head Nut 50-103
34 # 6 Hex Head Nut 50-105
35 5/8" Hex Head Nut 50-106
36 # 6 x 3/8" Machine Screw 50-107
37 1/2" Hex Head Nut 50-113
38 1/4"-20 Socket Head Screw 50-114
39 1/2" x 3" Tension Spring (pedal) 50-145
40 Warning Sign for Gate 50-151
41 Instruction Manual 50-157
42 Horn Alarm 50-168
43 Limit Switch Nuts 50-208
44 Rocker Switch 50-215
45 3/16" Hot-Rolled Metal Chassis 50-240
46 Speed Reducer Size 60 50-242
47 Polyethylene Cover 50-244
48 Limit Switch Chain 50-245
49 1" x 7" Limit Switch Shaft 50-246
50 3/4" Sealed Ball Bearings 50-247
51 4 pin Disc Release 50-248
52 1" Arbor release 50-249
53 41 b 27d Clutch Release Sprocket 50-250
54 41 b 15 x 3/4" Sprocket 50-251
55 Lexan Cover 50-252
56 3/4" Shaft Collar 50-253
57 Spring Load Bracket 50-254
58 3/4 HP Motor C face 50-256
59 1/4" x 1 1/2" Key Way 50-264
60 3/16" x 3/4" Key Way 50-265
61 # 8 Self-Tap Sheet Metal Screw 50-295
62 Radio Receiver Terminal 50-299
64 Outlet Switch Cover 50-510
65 120 VAC Double Outlet 50-511
66 1/4" x 3/4" Counter Zinc Bolt 50-513
67 Pedal Release Fork 50-514
68 3/16” Clutch Release Spring 50-516
69 #6 x 3/8" Zinc Screw 50-517
70 1 1/2" External Snap Ring 50-518
72 5/16" Lock Nut 50-540
73 Intelligate Control Board 50-777
