GATE OPENER BRANDS

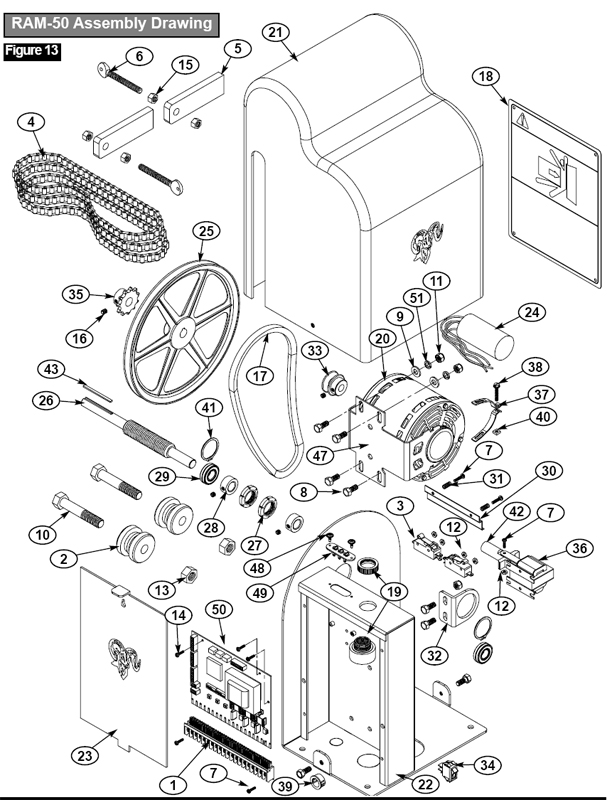

Ramset Operator Parts - RAM 50 Operator

Ramset Operator Parts - RAM 50 Operator

Item

Description

Part Number Price
1 20 Pin Edge Connector 50-039
2 2" Uhmw Idler Wheel
50-057
3 Limit Switch 00-h3
50-069
4 # 41 X 20' Gate Chain 50-087
5 Chain Bracket 50-089
6 1/2" X 4" Chain Bolt 50-090
7 # 6 X 1" Machine Screw
50-091
8 5/16-18 Hex Head Bolt 50-094
9 5/16" Flat Washer 50-097
10 5/8-11 X 3 1/2 Hex Head Bolt
50-098
11 5/16" Hex Head Nut 50-104
12 # 6-40 Machine Nut 50-105
13 5/8-11 Hex Head Nut 50-106
14 # 6 X 3/8 Machine Screw 50-107
15 1/2" Hex Head Nut 50-113
16 1/4-20 Socket Head 50-114
17 4l V Belt # 350 50-116
18 Warning Sing 50-151
19 Horn Alarm 50-168
20 1/2 Hp 115 Vac Electric Motor 50-200
21 Polyethylene Cover 50-201
22 10ga. Hot Rolled Metal Chassis 50-203
23 Board Metal Cover
50-204
24 Capacitor
50-205
25 10" Pulley
50-206
26 10 1/2" X 1" Limit Switch Shaft
50-207
27 Limit Switch Nuts
50-208
28 5/8" Shaft Collard
50-209
29 5/8" Sealed Ball Bearings
50-210
30 Spring Load Bracket
50-211
31 1" Tension Spring
50-212
32 " L " Bracket To Hold Ball Bearing
50-213
33 1/2" X 1-1/2" Steel Pulley
50-214
34 Rocker Switch
50-215
35 41b 9 X 5/8 Sprocket
50-216
36 Solenoid
50-217
37 Motor Clamp
50-218
38 # 10 X 11/2 Screw
50-219
39 Plastic Grommet
50-220
40 # 10 Square Nut
50-221
41 External Ring 1.250
50-230
42 1/2" X 1 1/2" Pin Lock
50-231
43 3/16 X 3/4" Key Way
50-265
44 Radio Receiver Harness
50-266
45 Limit Switch Harness
50-267
46 Motor Harness
50-268
47 Motor Base Plate
50-294
48 # 8 Self-tap Sheet Metal Screw
50-295
49 Radio Receiver Teminal
50-299
50 Inteligate Control Board
50-777
51 5/16 Lock Washer 50-096
