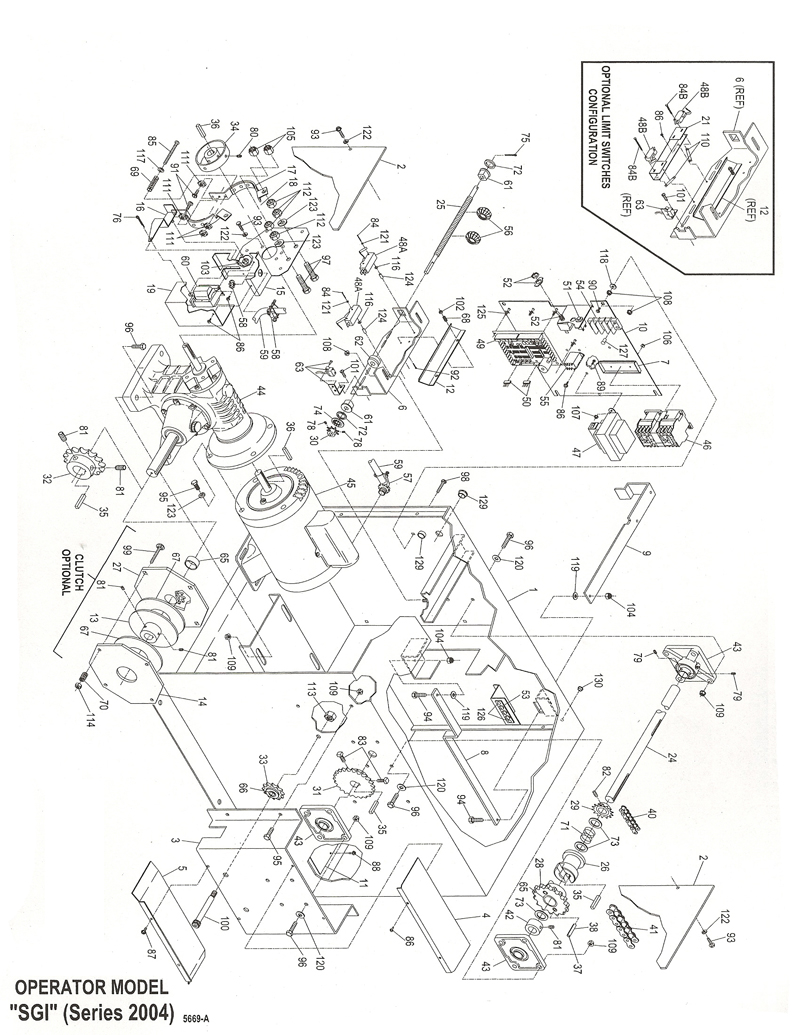

PowerMaster SGI Gate Opener Replacement Parts, PowerMaster SGI 2004 Gate Opener Parts

PowerMaster SGI Gate Opener Replacement Parts, PowerMaster SGI 2004 Gate Opener Parts

Item

Description

Part Number Price
1 Main Housing Weldment 3701
2 Cover Plate With Louvers 3708
3 Chain Guard Housing 3705
4 Chain Guard Top Cover 3706
5 Chain Guard Bottom Cover 3707
6 Limit Switch Housing 3709
7 Contactor Mounting Bracket 6454
8 Disconnect Arm 3711
9 Disconnect Handle 3719
10 Electric Plate 3744
11 Electric Access Plate 3104
12 Limit Nut Retainer Plate 6209
13 Drive Plate Weldment (Clutch) 1029
14 Pressure Plate (Clutch) 1030
15 Brake Backing Plate 2102
16 Brake Actuator Arm 2104
17 Left Brake Shoe 2101-1
18 Right Brake Shoe 2101-2
19 Brake Solenoid Cover 2105
20 Electric Plate Assembly, Pre-Wired
21 Standard Limit Switch Bracket 6242
24 Drive Shaft 3722
25 Limit Shaft 6427
26 Disconnect Brass Slide 2341
27 Cluster Weldment (Clutch) 2384
28 Disconnect Pinned Sprocket 7372
29 Sprocket, Limit Drive 7331
30 Sprocket, Limit Driven 6203
31 Sprocket, Output Drive 7313
32 Sprocket, Reducer (50B15) 7350
33 Sprocket, Idler (50C12) 7374
34 Brake Wheel 2103
35 Square Key, 1/4" SK250
36 Square Key, 3/16" SK187
37 Roll Pin, 1/4" RP25100
38 Roll Pin, 3/8" RP38100
40 Chain, Limit RC6525
41 Chain, Intermediate Drive RC4049
42 Collar, 1" SC100
43 Flange Bearing, Four-Bolt, 1" UCFL20720
44 Gear Reducer (Up to 1HP) DSC55
45 Motor AS REQ'D
46 Contactor LC2D12B7
47 Transformer, Single Phase TU1-2475VA
47 Transformer, Three Phase TU3-2475VA
48 Lmit Switch LS-AT
48 Mini Limit Switch LS-EMG
49 Control Board USMCB-01
50 Wiring Harness, 7-Pin HARN-7P
51 Single Phase Overload Reset Switch MB-AS REQD
51 Three Phase Overload Reset Switch LR2-AS REQD
52 On/Off Switch 2GK51-73
53 Terminal Strip, 3-Position, Radio Control TS-04
54 Terminal Block, 3-Position TB-03
55 Relay, 24Vac R24A-SEDPDT
56 Limit Nut 6424
57 3/8" Connector, 90-Degree 801-DC2
58 3/8" Connector, Straight 501-DC
59 Insulated Tubing, 3/8" 8450HFS
60 Brake Solenoid, 120V 4X240
60 Brake Solenoid, 240V 4X894
61 Flange Bearing, 3/8" FB375
62 Magnetic Sensor Wheel 3155
63 Magnetic Snesor and Bracket Assembly 2392
65 Plain Bearing, 1" (Clutch) PBO1012510
66 Plain Bearing, 5/8" PBO628775
67 Clutch Fibre Disc (Clutch) 1018
68 Spring LC045D2MW
69 Spring LC045E11MW
70 Spring (Clutch) C.120
71 Spring C.1225
72 Shim, 3/8" SHIM038050
73 Shim, 1" SHIM100050
74 Push On Retaining Ring PS375012
75 Cotter Pin 0941CP
76 Cotter Pin 0925CP
78 Socket Set Screw 1104SSC
79 Socket Set Screw 1404SSC
80 Socket Set Screw 1405SSC
81 Socket Set Screw 3105SSC
82 Socket Set Screw 3110SSC
83 Square Head Set Screw SQS5168X75
84 Pan Head Mahcine Screw 0624MSP
84 Hex Head Unslotted Machine Screw 0410MH
85 Round Head Machine Screw 1140MSR
86 Hex Washer Head, Type B, Sheet Metal Screw 0804BSW
87 Hex Washer Head, Type B, Sheet Metal Screw 1008BSW
88 Hex Washer Head, Type B, Sheet Metal Screw 1408BSW
89 Hex Washer Head Machine Screw 0808MSW
90 Hex Washer Head Machine Screw (Green) 1106MSWG
91 Hex Washer Head Machine Screw 1110MSW
92 Hex Washer Head Machine Screw 0616MH
93 Hex Head Tap Bolt 1410BHT
94 Hex Head Tap Bolt 3716BHT
95 Hex Head Tap Bolt 3712BHT
96 Hex Head Tap Bolt 3720BHT
97 Hex Head Tap Bolt 3724BHT
98 Carriage Bolt 1416C
99 Carriage Bolt (Clutch) 3736C
100 Stripper Bolt 6252SS
101 Hex Washer Head Machine Screw 0606MSW
102 Nylon Insert Stop Nut 06NS
103 Nylon Insert Stop Nut 14NS
104 Nylon Insert Stop Nut 31NS
105 Nylon Insert Stop Nut 37NS
106 Serrated Flange Hex Nut 06NR
107 Serrated Flange Hex Nut 08NR
108 Serrated Flange Hex Nut 14NR
109 Serrated Flange Hex Nut 37NR
110 Tinnerman Nut 4-40TIN
111 Hex Nut 11NF
112 Hex Nut 37NF
113 Hex Nut 50NF
114 Hex Jam Nut (Clutch) 37NJ
116 Flatwasher 06WSAE
117 Flatwasher 10WSAE
118 Flatwasher 14WSAE
119 Flatwasher 31WSAE
120 Flatwasher 37WSAE
121 Lockwasher 06WS
122 Lockwasher 14WS
123 Lockwasher 37WS
124 Limit Switch Spacer 9462
125 Stand Off PS14
126 Rivet 1624-0411
127 Rivet BF01-0630
129 Grommet G-87
130 Grommet G-37



Clutch Assembly Parts List

Item Description Part Number Price
99 Carriage Bolt 3736C
27 Cluster Weldment 2384
65 Plain Bearing, 1" PBO1012510
67 Clutch Fibre Disc 1018
13 Drive Plate Weldment 1029
81 Socket Set Screw 3105SSC
14 Pressure Plate 1030
70 Spring C.120
114 Hex Jam Nut 37NJ
