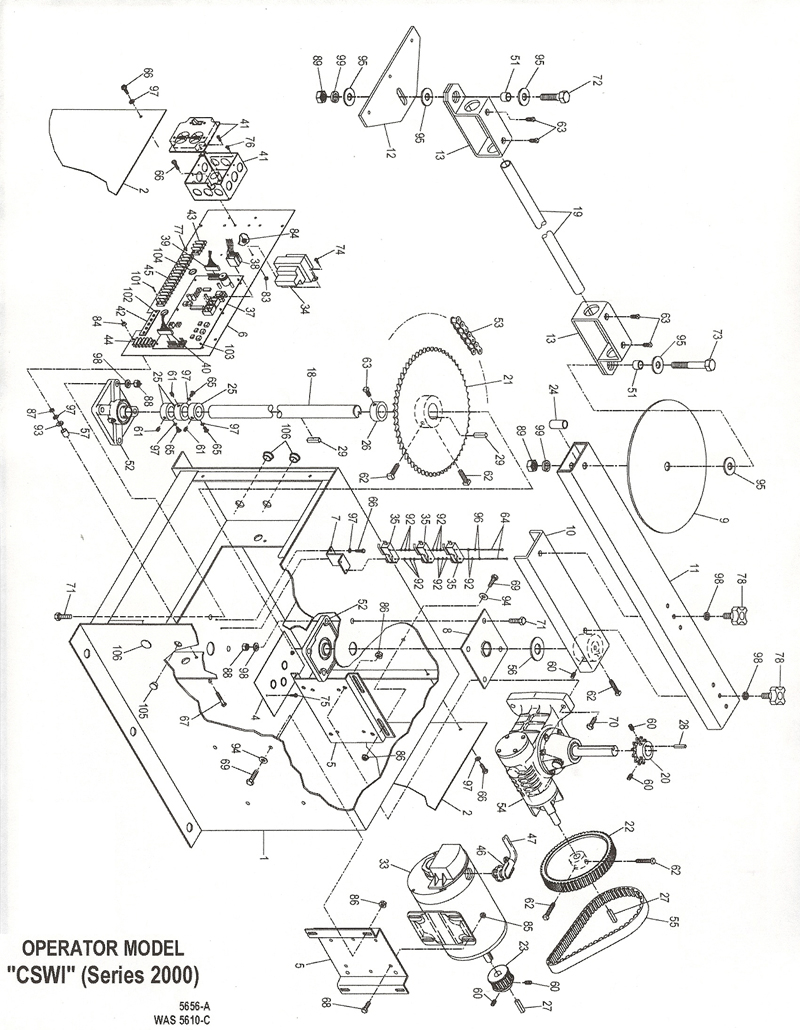

Powermaster Operator Parts - CSWI Operator

Powermaster Operator Parts - CSWI Operator

Item

Description

Part Number Price
1 MAIN HOUSING WELDMENT 3801
2 COVER PLATE WITH LOUVERS 3708
4 ELECTRICAL ACCESS PLATE 3104
5 MOTOR/REDUCER MOUNTING BRACKET 2312
6 ELECTRIC PLATE 3802
7A LIMIT SWITCH BRACKET 3803
7B MINI LIMIT SWITCH BRACKET 3134
8 EXTRUDED RAIN CAP 3806
9 ANTI-PINCH DISC 3123
10 CONTROL ARM WELDMENT 1045
11 CONTROL ARM EXTENSION WELDMENT 1046
12 GATE BRACKET 1010
13 PIPE KNUCKLE 1013
18 DRIVE SHAFT 3809
19 CONTROL ROD 1036
20 REDUCER SPROCKET 50B12X1"X1/4" KWY 7314
21 OUTPUT SHAFT SPROCKET 50B60X150X3/8"KWY 7375
22 REDUCER, TIMING PULLEY 9009
23 MOTOR, TIMING PULLEY 9007
24 CONTROL ARM SPACER 3113
25 1 1/2" LIMIT COLLAR SC-150-L
26 1 1/2" COLLAR SC-150-R
27 3/16" SQUARE KEY SK316X1.375
28 1/4" SQUARE KEY SK14X1.375
29 3/8" SQUARE KEY SK375X1.125
33 MOTOR 10082
34 1Ø TRANSFORMER T1/2-2360V
35A SINGLE LIMIT SWITCH LS-AT-#3
35B MINI LIMIT SWITCH LSD44
37 PC CONTROL BOARD GSMCB01
38 8 PIN WIRING HARNESS 8P-HARN
39 10 PIN WIRING HARNESS 10P-HARN
40 11 PIN WIRING HARNESS 11P-HARN
41 4" SQUARE, ON/OFF SWITCH AND OUTLET BOX V353D
42 4 POSITION R/C TERMINAL STRIP R/C-TS-04
43 2 POSITION TERMINAL STRIP TS-02
44 4 POSITION TERMINAL STRIP TS-04
45 14 POSITION TERMINAL STRIP TS-114
46 3/8" 90º CONNECTOR 801-DC2
47 INSULATING TUBING PVI-024
51 3/4" PLAIN BEARING PBO-751062
52 1-1/2" DIAMETER FOUR BOLT FLANGE BEARING UCF-207
53 DRIVE CHAIN RC50X65
54 GEAR REDUCER (UP TP 1 HP) G.R.55
55 TIMING BELT 300L075
56 CONTROL ARM SEAL RING RS=1500
57 ELECTRIC PLATE MOUNTING SPACER 60998
58 LIMIT SWITCH SPACER (FOR MINI LIMIT SWITCHES) 60233
60 SOCKET SET SCREW 3105SSC
61 SOCKET SET SCREW 3706SSC
62 SQUARE HEAD SET SCREW SQ51618X1
63 SQUARE HEAD SET SCREW SQ3816X5/8
64A PAN HEAD MACHINE SCREW 0640MSP
64B PAN HEAD MACHINE SCREW 0436MSP
65 ROUND HEAD MACHINE SCREW 1406MSR
66 HEX HEAD BOLT 1408BHT
67 HEX HEAD CAP BOLT 1424CH2
68 HEX HEAD TAP BOLT 3112BHT
69 HEX HEAD TAP BOLT 3716BHT
70 HEX HEAD TAP BOLT 3720BHT
71 HEX HEAD TAP BOLT 5024BHT
72 HEX HEAD CAP BOLT 7540CH2
73 HEX HEAD CAP BOLT 7564CH2
74 HEX WASHER HEAD MACHINE SCREW 0808MSW
75 HEX WASHER HEAD, TYPE B, SHEET METAL SCREW 1408BW
76 HEX WASHER HEAD (GREEN) TRHEAD CUTTING SCREW 11063SW
77 HEX WASHER HEAD MACHINE SCREW 1106MSW
78 PHENOLIC HEAD KNOB 1/2"-13X3/4"LG
83 SERRATED FLANGE HEX NUT 08NR
84 SERRATED FLANGE HEX NUT 14NR
85 SERRATED FLANGE HEX NUT 31NR
86 SERRATED FLANGE HEX NUT 37NR
87 HEX NUT 14NF
88 HEX NUT 50NF
89 HEX NUT 75NF
92 FLAT WASHER 06WSAE
93 FLAT WASHER 14WSAE
94 FLAT WASHER 37WSAE
95 FLAT WASHER 75WUSS
96 LOCK WASHER 06WS
97 LOCK WASHER 14WS
98 LOCK WASHER 50WS
99 LOCK WASHER 75WS
101 RIVET SD-46BS
102 RIVET 1624-0041
103 PLASTIC STAND OFF PSO-14
104 7/8" GROMMET G-87
105 1/2" K/O SEAL S-50
106 7/8" K/O SEAL S-87
