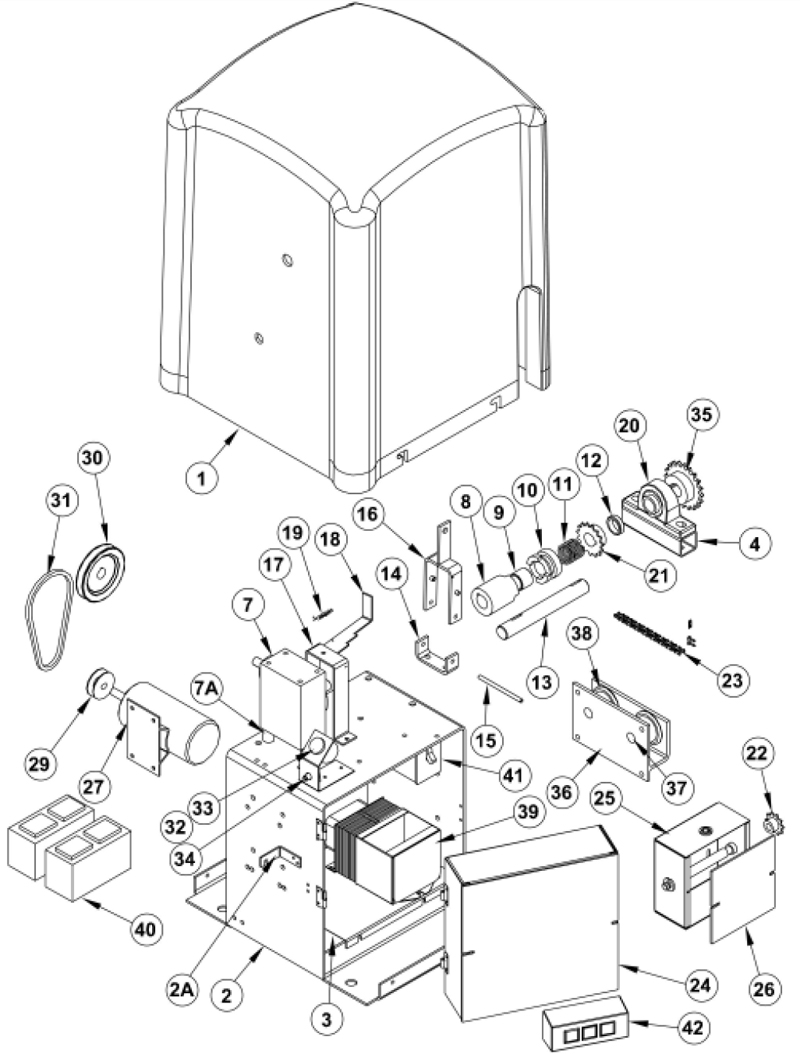

OSCO Slide Gate Opener Parts - SLD

OSCO Slide Gate Opener Parts - SLD

Item Description Part Number Price
1 Operator Cover 2300-907
  Plunger Reset Assembly 2510-354 Our Price: $32.21
  Plunger Reset Button 2500-2240
  Plunger Extension only 2500-2241
  Lock for Cover, with Keys 2200-790 Our Price: $20.22
2 Main Frame Assembly 2110-796 Our Price: $135.76
2A Lock Tab Bracket 2100-2006 Our Price: $4.39
3 Bottom Shelf 2100-2055 Our Price: $16.16
4 Pillow Block Tube Spacer 2100-1985
7 Gear Reducer, 20:1 2200-942 Our Price: $161.55
7A Gear Reducer Tube Spacer 2100-1980
8 Reducer Coupler, with Oilite Bushing 2110-783 Our Price: $43.87
9 Oilite Bushing for Coupler 2200-117 Our Price: $10.59
10 Disconnect Collar 2100-2026 Our Price: $36.49
11 Disconnect Collar Spring 2200-115 Our Price: $11.02
12 Shaft Collar, 1” diameter 2200-014 Our Price: $7.17
13 Drive Shaft, 1” diameter 2100-1983 Our Price: $27.82
14 Disconnect Handle Fulcrum Bracket 2100-1986 Our Price: $11.77
15 Pin for Disconnect Handle 2100-549 Our Price: $5.56
  Push-on Nut, 1/4” (not shown) 2400-169 Our Price: $2.00
16 Disconnect Handle 2120-477 Our Price: $35.31
17 Disconnect Fulcrum Bracket 2100-2060 Our Price: $14.66
18 Disconnect Lever 2100-2059
19 Locking Handle Spring 2200-939 Our Price: $3.00
20 Pillow Block Bearing, 1” diameter 2200-274 Our Price: $65.84
21 Sprocket, 48-B-15, 1” bore 2200-042 Our Price: $37.02
22 Sprocket, 48-B-10, 1/2” bore 2200-008 Our Price: $21.83
23 #48 Roller Chain, 23 Links 2200-414 Our Price: $6.31
  #48 Master Link 2200-010 Our Price: $2.14
24 Controller
25 Limit Box Assembly with Cover 2520-396-SLC Our Price: $90.34
  Limit Shaft 2100-057 Our Price: $21.83
  Oilite Bushing 2200-029 Our Price: $6.31
  Limit Nut 2200-030 Our Price: $3.85
  1/2” E-Ring 2200-193 Our Price: $2.00
  Heyco Bushing with Wire Guards 2300-946 Our Price: $2.00
  Limit Switch 2500-440 Our Price: $11.77
  Detent Plate 2100-261 Our Price: $3.85
  Detent Spring 2200-028 Our Price: $78.50
26 Limit Box Cover 2300-945 Our Price: $11.77
27 Motor, 24VDC 2500-1902
  Brush Replacement Kit 2510-243 Our Price: $75.25
29 Motor Pulley, 2” 2200-132 Our Price: $14.34
30 Pulley, 4”, 5/8” bore 2200-118 Our Price: $18.51
  Pulley, 3”, 5/8” bore, high-speed mod. only 2200-984
31 V-Belt, 4L, 30” 2200-712 Our Price: $14.34
  V-Belt, 4L, 29”, cogged, high-speed mod. only 2200-975 Our Price: $43.55
32 Stop/Reset Button Alarm Assembly 2510-366 Our Price: $60.69
33 Alarm 2500-867
  Stop/Reset Button Bracket 2100-2058 Our Price: $7.38
34 Stop/Reset Button 2500-1495
35 Sprocket, 41-B-20, 1” bore 2200-269 Our Price: $42.74
36 Idler Assembly 2110-699 Our Price: $56.80
37 Idler Pin 2100-1731 Our Price: $5.14
38 Idler Wheel, UHMW 2300-697 Our Price: $21.94
39 Transformer Assembly 2510-277 Our Price: $240.05
  Bridge Rectifier 2500-1768 Our Price: $11.77
  Fuse Holder 2500-1819 Our Price: $17.66
  Fuse, 10 Amp, Slow-Blow 2500-1748 Our Price: $2.57
  Transformer only, 115/24V, 500VA 2500-1979 Our Price: $216.97
40 Battery Assembly 2510-182 Our Price: $113.14
  Battery, 12V (2 required) 2500-1118
  Velcro Tape, per foot 2300-450 Our Price: $2.00
41 Power On/Off Switch Assembly 2510-266-E Our Price: $51.15
  Switch only 2500-2205 Our Price: $30.71
42 Three-Button Station assembly 2510-064
  Accessory Shelf 2100-2008 Our Price: $30.60

Parts from Accessory Box (not shown in exploded view)

Item Descritpion Part Number Price
  Gate Attachment Bracket 2100-2007 Our Price: $4.39
  U-Bolt, 3” 2400-170 Our Price: $4.71
  #41 Chain Tension Bolt 2100-054 Our Price: $8.88
  Chain Spring 2200-367 Our Price: $5.14
  #41 Master Link 2200-027 Our Price: $2.57
  #41 Chain, per foot 2200-150 Our Price: $6.74
  Square Head Bolt, 3/8 2400-152

Optional Parts

Item Descritpion Part Number Price
  Remote Disconnect Kit 2650-107
  Post Mounting Kit 2120-483
  Base Plate for Operator 2100-2010
  2” Torque Limiter with Bushing and 4” Pulley 2220-045 Our Price: $125.43
  2” Torque Limiter only 2200-713 Our Price: $102.40
  Friction Disc Pair for Torque Limiter 2300-693 Our Price: $27.82
  Bushing for Torque Limiter 2200-877 Our Price: $12.41
