Doorking Swing Gate Opener Parts - 6500

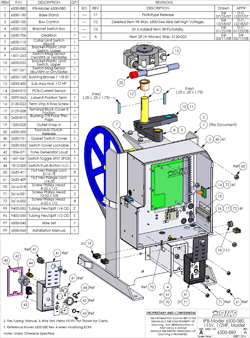

Doorking Swing Gate Opener Parts - 6500 (View 1)

Click Image to Enlarge

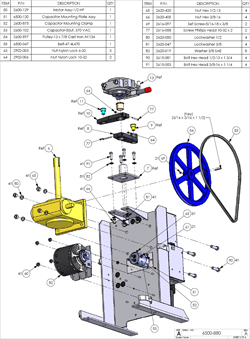

Doorking Swing Gate Opener Parts - 6500 (View 2)

Click Image to Enlarge

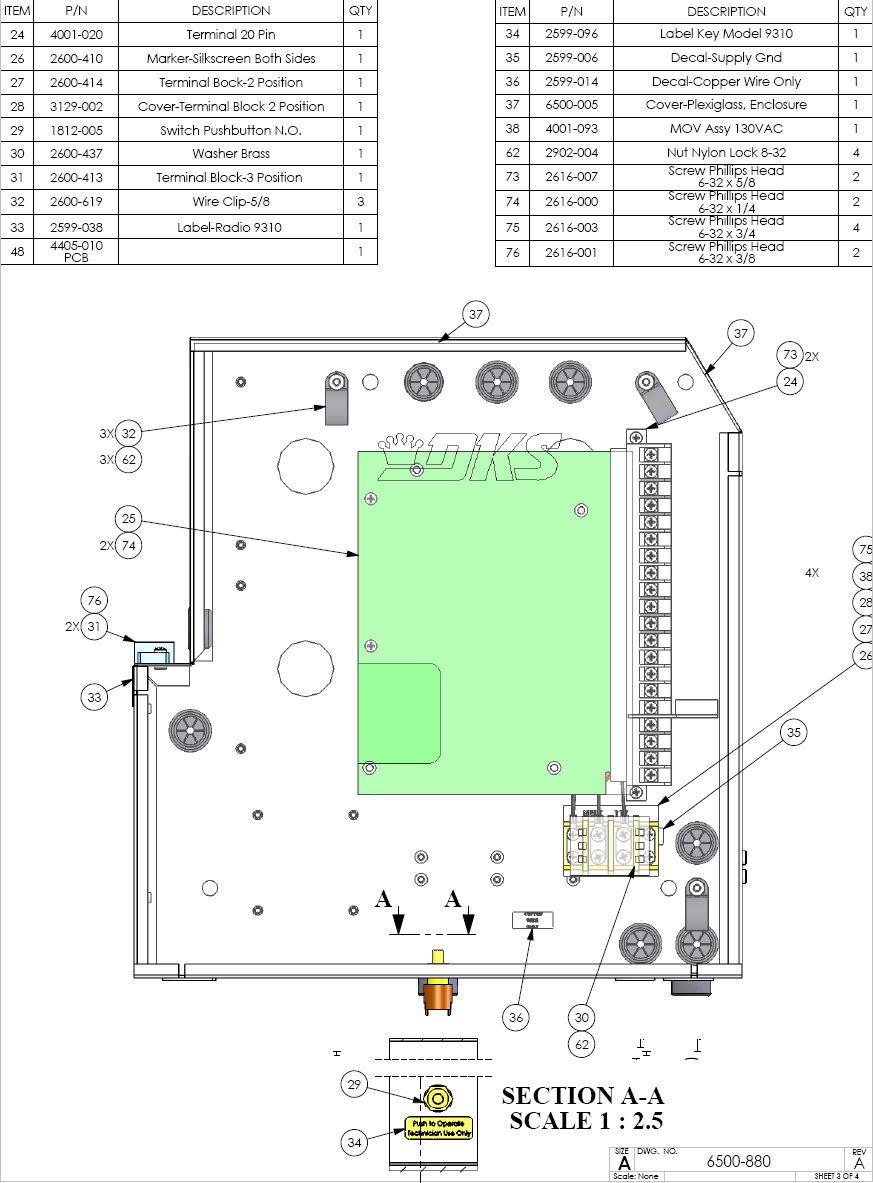

Doorking Swing Gate Opener Parts - 6500 (View 3)

Click Image to Enlarge

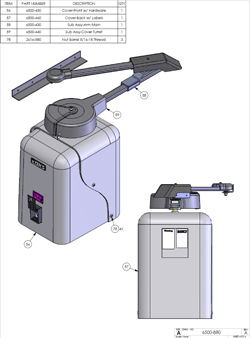

Doorking Swing Gate Opener Parts - 6500 (View 4)

Click Image to Enlarge

CALL FOR PRICE

Item Description Part Number
1 IPB-Model 6500-080 6500-880
2 Base Stand 6500-150
3 Box Control 6500-100
4 Bracket Switch Box 6500-105
6 Gearbox 2600-706
7 Collar Limit Switch Mount 6500-115
8 Bracket-Plastic Limit Switch, Lower 6500-030
9 Switch-Mag Sensor (Yel/Wht or Yel/Slate) 1601-263
10 Bracket-Plastic Limit Switch, Upper 6500-032
11 Switch-Mag Sensor (Blu/Wht or Orn/Slate) 1601-261
12 Bushing Bronze 1 1/8 ID 6500-135
13 Sub Assy-Hub 1/2 HP 6500-400
14 PCB-Current Sensor 2343-010
15 Label-8 Position Term 2599-063
16 Term Strip 8 Row Screw 3130-023
17 Terminal Block Cover 8 Position 3129-008
18 Bushing 7/8 Poke Thru Flaps 2600-810
19 Outlet Snap In 1200-028
20 Tool-Hub Clutch Release 6500-200
24 Terminal 20 Pin 4001-020
26 Marker-Silkscreen Both Sides 2600-410
27 Terminal Bock-2 Position 2600-414
28 Cover-Terminal Block 2 Position 3129-002
29 Switch Pushbutton N.O. 1812-005
30 Washer Brass 2600-437
31 Terminal Block-3 Position 2600-413
32 Wire Clip-5/8 2600-619
33 Label-Radio 9310 2599-038
34 Label Key Model 9310 2599-096
35 Decal-Supply Gnd 2599-006
36 Decal-Copper Wire Only 2599-014
37 Cover-Plexiglass, Enclosure 6500-005
38 MOV Assy 130VAC 4001-093
40 Gasket Switch Cover 2600-731
41 Switch Cover Lockable 2600-533
42 Tone Generator Loud 1506-071
43 Switch Toggle SPST 2POS 1601-041
44 Switch Push Button N.O. 1812-005
48 PCB 4405-010
50 Motor Assy-1/2 HP 2600-129
51 Capacitor Mounting Plate Assy 6500-120
52 Capacitor Mounting Clamp 2600-875
53 Capacitor-50uf, 370 VAC 2600-102
54 Pulley-13 x 7/8 Cast Iron AK134 2600-597
55 Belt-47 4L470 6500-047
56 Cover-Front w/ Hardware 6500-450
57 Cover-Back w/ Labels 6500-460
58 Sub Assy-Arm Main 6500-430
59 Sub Assy-Cover Turret 6500-440
60 Nut Hex Flange Lock 5/16-18 2620-411
61 Nut Hex Flange Lock 1/4-20 2620-409
62 Nut Nylon Lock 8-32 2902-004
63 Nut Nylon Lock 6-32 2902-003
64 Nut Nylon Lock 10-32 2902-006
65 Nut Hex 1/2-13 2620-420
66 Nut Hex 3/8-16 2620-405
69 Set Screw-5/16-18 x 3/8 2616-097
70 Screw Phillips Head 8-32 x 1/2 2616-018
71 Screw Phillips Head 10-32 x 3/8 2616-051
72 Screw Phillips Head 6-32 x 1/2 2616-002
73 Screw Phillips Head 6-32 x 5/8 2616-007
74 Screw Phillips Head 6-32 x 1/4 2616-000
75 Screw Phillips Head 6-32 x 3/4 2616-003
76 Screw Phillips Head 6-32 x 3/8 2616-001
77 Screw Phillips Head 10-32 x 2 2616-058
78 Nut Barrel 5/16-18 Thread 2616-580
80 Lockwasher 1/2 2620-050
81 Lockwasher 3/8 2620-047
82 Washer 3/8 SAE 2620-019
90 Bolt Hex Head 1/2-13 x 1 3/4 2615-081
91 Bolt Hex Head 3/8-16 x 1 1/4 2615-053
95 Tubing Flex/Split 1/4 OD 9402-053
96 Tubing Flex/Split 1/2 OD 9402-055
97 Wire Set 6500-043
99 Installation Manual 6500-065
