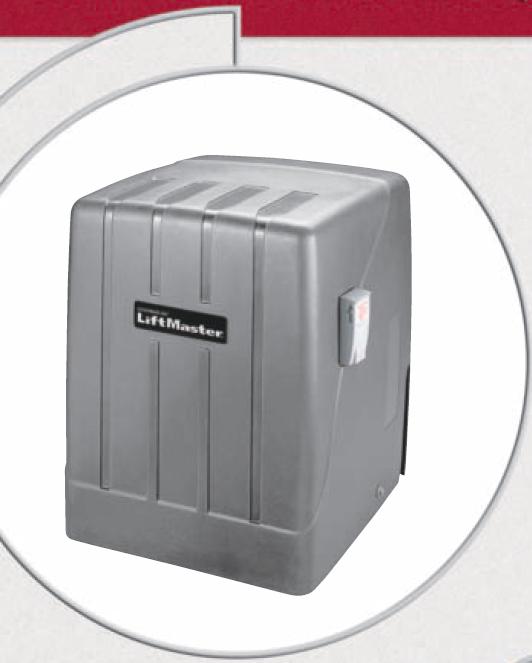

Liftmaster MEGA SLIDE-X Gate Opener, Liftmaster Commercial DC Slide Gate Operator


Liftmaster MEGA SLIDE-X Gate Opener, Liftmaster Commercial DC Slide Gate Operator

LiftMaster Gate Operators - Liftmaster MEGA SLIDE X Commercial DC Slide
The Liftmaster Mega Slide-X is a DC-powered addition to the opener family of door gate operators. Designed with a 24V DC (1/2 HP equivalent) motor, this model provides exceptional starting torque and continuous operation, making it ideal for most applications. Constructed with 1/4" gold zinc-plated steel chassis, it's corrosion resistant. The heavy-duty motor supports gates weighing up to 1,000 lbs. and up to 32 ft. in length.

 Manual

 Spec Sheet

Click Here For Replacement Parts

LiftMaster MEGA SLIDE-X Commercial DC Slide Gate Opener / Operator - MSLXDCBB3 --(( Discontinued ))



Liftmaster MEGA SLIDE Residential / Medium-Duty DC Slide Gate Opener / Operator - MSLDCBB3 --(( Discontinued ))



Electrical Features:
Radio Receiver Built-in
Built-in Battery Backup
Soft Start/Stop
DC Operator System
Control Inputs
Inherent Obstruction Sensing
LED Indicators

Mechanical Features:
Gold Zinc-Plated Chassis
Larger Cabinet
Dynamic Braking
Timer to Close
Dual Gate Operation

Gate logic board provides many enhanced and exclusive features
* Digital Logic Control Allowing for Long Control Lines of Over 1,000 Feet
* Separate Open and Close External Sensor Inputs
* Fully Adjustable Inherent Obstruction Detection System
* 17 LEDs to Ease Installation and Speed Diagnostics
* “Sequenced Access Management” (SAM) System
* Advanced Dual Gate Operation
* Industrial Surge and Spike Protection
* Shadow Loop Input

LiftMaster Mega Slide X MSLXDCBB3 Openers
Commercial Slide Gate Door Operators
Specifications
*  Operator size - 24" x 21 " x 19"
*  Power - 110/220 Voltz, Single phase - 60 Hz
*  Operator weight - 200 pounds
*  Accessory power - One 24 VAC
*  UL listed - UL991, UL325 Class I, II, III, IV
Construction:
*  Gear reduction: 30:1 wormgear in oil
*  Motor: 1/2 high-starting torque motor
*  Enclosure: Weather resistant
Optional equipment:
* Self-Regulating Heater
