RENO B-4-DP-S, 11-Pin Amphenol Style Connector, 12V - 24V vSingle Channel Loop Detector - Internal Dip Switches - Fail Secure

RENO B-4-DP-S, 11-Pin Amphenol Style Connector, 12V - 24V vSingle Channel Loop Detector - Internal Dip Switches - Fail Secure

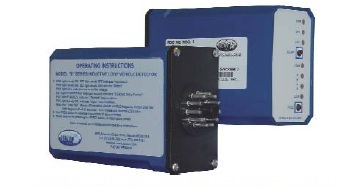

The RENO B4 is a full featured, single channel, dual output vehicle detector that incorporates the reliable vehicle detection technology found in all of Reno A & E’s vehicle detectors. All detector functions and settings are configured by using a set of eight internal DIP switches and a front panel mounted pushbutton switch.



RENO B-4-DP-S, 11-Pin Amphenol Style Connector, 12V - 24V vSingle Channel Loop Detector - Internal Dip Switches - Fail Secure --- $ 105.95





RENO B4 is an 11-Pin Amphenol Style Connector, Single Channel Loop Detector - 12V thru  24V

Models available that operate on 12 VDC / 24 VDC / 24 VAC, 120 VAC, or 240 VAC input power
Fail-Safe or Fail-Secure versions available.
Dual Relay outputs:
• Output A:
• Limited Presence.
• True Presence™.
• Output B:
• Presence (Duplicates Output A).
• Pulse-on-Entry.
• Pulse-on-Exit.
Delay Outputs A and B for two seconds.
Eight levels of sensitivity.
Sensitivity Boost for applications where high-bed vehicles might be encountered.
Detect Memory feature maintains detection during momentary power interruptions of up to two seconds.
Fail LED indicates current loop failures or loop failures that have occurred.
Four loop frequencies.
Loop Fail Memory stores a record of the last loop failure.
