Doorking 1812 Access Plus Telephone Intercom Entry System, DKS 1812 Access Plus Intercom System

Doorking 1812 Access Plus The Doorking 1812 Access Plus includes all of the features found in the 1812 Plus and is designed for larger homes that require control of a main door or gate and up to six additional access points. Discerning homeowners will appreciate the additional programming, reporting and advanced features found in the 1812 Access Plus system. IP Addressable – uses TCP/IP communication to program the system from your PC via LAN/WAN or an Internet connection. Program from your PC. Intuitive, easy to use, Windows based software program included. Two relays on the main board control a door and gate, plus control up to six (6) additional access points with card readers, keypads or RF controls via RS-485 communication. 100 card/transmitter/keypad codes (50 with phone numbers; 50 access codes only). Control all access points from your PC. Schedule lock and unlock times and easily lock or unlock an access point with the click of your mouse. 500 event transaction buffer can be downloaded to your PC and provides you with a record of all events at the access point(s). Setup email notification of certain events of your choice. For example, an email can be sent to you when a certain access code is used.  1812 Access Plus Spec Sheet  1812 Access Plus Manual  1812 Access Plus QuickStart

Doorking 1812 096 Access Plus Curved Surface Mount, Stainless Steel Faceplate, Black Housing

Doorking 1812 090 Access Plus Surface Mount, Stainless Steel Faceplate, Black Hosuing

Doorking 1812 077 Access Plus Surface Mount, Gold-Plated Faceplate, Black Housing

Doorking 1812 092 Access Plus Flush Mount, Stainless Steel Faceplate (Includes Rough-In-Box)

Doorking 1812 079 Access Plus Flush Mount, Gold-Plated Faceplate, (Includes Rough-In-Box)

Doorking 1812 094 Access Plus Wall Mount, Stainless Steel Housing

Doorking 1812 105 Access Replaces Black Housing with Stainless Steel Housing

Doorking 1812 106 Replaces Black Housing with Gold-Plated Housing

Doorking Slave (Secondary) Keypad Flush Mount

Doorking Slave (Secondary) Keypad Surface Mount

ADVANCED FEATURES

Doorking 1812 Access Plus

• All of the 1812 Plus features, and…
• IP addressable – program from your PC via LAN/WAN or an internet connection or via built-in modem.
• Intuitive, easy to use, Windows based programming software included.
• Add up to six (6) card readers, keypads or RF receivers (RS-485).
• 100 card / transmitter / keypad codes (50 with phone numbers; 50 access codes only).
• Up to 30 holidays can be added to access and hold open time zones.
• Control access points from your PC. Schedule lock and unlock times, lock or unlock an access point with the click of your mouse.
• 10 temporary access codes with start and end dates.
• 500 event transaction buffer.
• Email notification of events of your choice. Internet connection required.

SPECIFICATIONS

• Hands free, full duplex digital audio circuit.
• 1812 Plus Capacity:
  Interfaces with a single phone line
  27 dial-out phone numbers
  Two relays for door or gate control.
• 1812 Access Plus Capacity:
  Same as 1812 Plus model, and the ability to control an additional six (6) access points with card readers, keypads or RF controls
• 1812 Plus Programming Method: System keypad or touch-tone telephone.
• 1812 Access Plus Programming Method: System keypad, touch-tone telephone or from PC.
• 16 VAC, 20 VA (250 ma) power transformer provided.
• FCC (US): DUF6VT-12874-OT-0
• DOC (CAN): 1736 4507 A
• Complies with UL 294; ETL Listed.

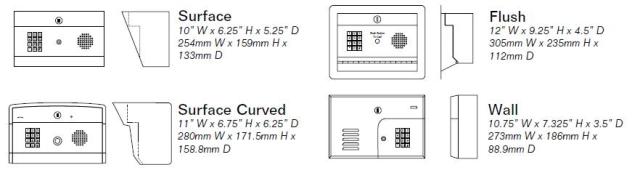

• Surface mount dimensions: 6.25"H x 10"W x 5.25"D.
• Surface curved mount dimensions: 6.75"H x 11"W x 6.25"D
• Flush mount dimensions: 9.25"H x 12"W x 4.5"D.
• Wall mount dimensions: 7.325"H x 10.75"W x 3.5"D

OPTIONS FOR THIS MODEL

Surface, curved surface, flush or wall mount - specify which.
Stainless steel or gold plated housing (surface mount only).
Gold plated faceplate - Flush or surface mount units only.

ACCESSORIES AVAILABLE FOR THIS MODEL

Heater kit (recommended when temperatures routinely fall below 10F / -12C).
Mounting post.
Auxiliary keypad for entry codes.
Surge suppressors.
